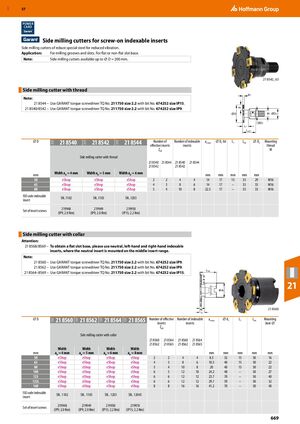

GBP 57 POWER CARD Side milling cutters for screw-on indexable inserts Side milling cutters of robust special steel for reduced vibration. Application: For milling grooves and slots. For flat or non-flat slot base. Note: Side milling cutters available up to ⌀ D = 200 mm. 21 8542_63 Side milling cutter with thread ​ ap Note: 21 8544 – Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size IP15. ae 21 8540/8542 – Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size IP9. ØD M ØD2 ØD1 L1 L tot ⌀D 21 8540 21 8542 21 8544 Number of Number of indexable ae max ⌀ D1 h6 L1 Ltot ⌀ D2 Mounting 21O 21O 21O effective inserts inserts thread Zeff M Side milling cutter with thread 21 8540 21 8544 21 8540 21 8544 ​ ​ ​ ​ ​ ​ 21 8542 21 8542 Width ap = 4 mm Width ap = 5 mm Width ap = 6 mm mm ​ ​ ​ ​ mm mm mm mm mm ​ 50 eShop eShop eShop 2 2 4 4 14 17 15 35 29 M16 63 eShop eShop eShop 4 3 8 6 14 17 – 35 33 M16 80 eShop eShop eShop 5 4 10 8 22.5 17 – 35 33 M16 ISO code indexable SN..1102 SN..1103 SN..1203 ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ insert 219948 219949 219950 Set of insert screws ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ (IP9; 2.0 Nm) (IP9; 2.0 Nm) (IP15; 2.2 Nm) Side milling cutter with collar ​ Attention: 21 8568/8569 – To obtain a flat slot base, please use neutral, left-hand and right-hand indexable inserts, where the neutral insert is mounted on the middle insert range. Note: 21 8560 – Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size IP9. 21 8562 – Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size IP9. tot 21 8564–8569 – Use GARANT torque screwdriver TQ No. 211750 size 2.2 with bit No. 674252 size IP15. 21 21 8560 ⌀D 21 8560 21 8562 21 8564 21 8565 Numberinserts of effective Number of indexable ae max ⌀ d1 L1 Ltot Mounting 21O 21O 21O 21O inserts bore ⌀ Zeff Side milling cutter with collar 21 8560 21 8564 21 8560 21 8564 ​ ​ ​ ​ ​ 21 8562 21 8565 21 8562 21 8565 Width Width Width Width mm ap = 4 mm ap = 5 mm ap = 6 mm ap = 8 mm ​ ​ ​ ​ mm mm mm mm mm 50 eShop eShop eShop eShop 2 2 4 4 8.5 32 15 50 16 63 eShop eShop eShop eShop 4 3 8 6 10.5 40 15 50 22 80 eShop eShop eShop eShop 5 4 10 8 20 40 15 50 22 100 eShop eShop eShop eShop 6 5 12 10 24.2 48 – 50 27 125 eShop eShop eShop eShop 6 6 12 12 23.7 70 – 50 40 125L eShop eShop eShop eShop 6 6 12 12 29.7 59 – 50 32 160 eShop eShop eShop eShop 8 8 16 16 41.2 70 – 50 40 ISO code indexable SN.. 1102 SN.. 1103 SN.. 1203 SN.. 12045 ​ ​ ​ ​ ​ ​ ​ ​ ​ insert 219948 219949 219950 219978 Set of insert screws ​ ​ ​ ​ ​ ​ ​ ​ ​ (IP9; 2.0 Nm) (IP9; 2.0 Nm) (IP15; 2.2 Nm) (IP15; 2.2 Nm) 669
