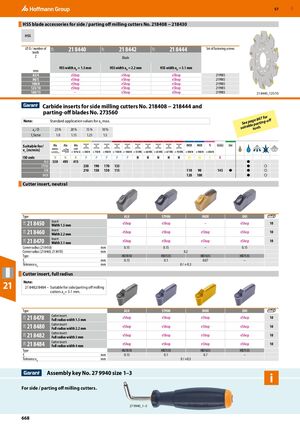

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 668

GBP 57 HSS blade accessories for side / parting off milling cutters No. 218408 − 218430 ​ HSS ⌀ D / number of 21P 21 8440 21 8442 21 8444 Set of fastening screws 21P 21P teeth Z Blade HSS width ap = 1.5 mm HSS width ap = 2.2 mm HSS width ap = 3.1 mm mm ​ 63/4 eShop eShop eShop 219985 80/5 eShop eShop eShop 219985 100/8 eShop eShop eShop 219985 125/10 eShop eShop eShop 219985 160/15 – eShop eShop 219985 21 8440_125/10 ​ Carbide inserts for side milling cutters No. 218408 − 218444 and parting-off blades No. 273560 r 67 fo off Note: Standard application values for ae max. age 8 - See p le parting b ae / D 25 % 20 % 15 % 10 % suita tools fz factor 1.0 1.15 1.25 1.5 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K ​ ​ ​ ​ ​ ​ ALU​ 530 495 415 ● ST900 230 190 170 135 ● ○ UNI 210 150 150 115 110 90 145 ● ● ○ INOX​ 120 100 ● ○ Cutter insert, neutral ​ Type ALU ST900 INOX UNI Insert 21 8450 eShop eShop – eShop 10 21B Width 1.5 mm Insert 21 8460 eShop eShop eShop eShop 10 21B Width 2.2 mm Insert 21 8470 eShop eShop eShop eShop 10 21B Width 3.1 mm Corner radius (21 8450) mm 0.15 0.15 – 0.15 ​ Corner radius (21 8460, 21 8470) mm 0.2 ​ Type HU7810 HB7535 HB7635 HB7535 ​ fz mm 0.13 0.1 0.07 – ​ Tolerance ap mm 0 / + 0.3 ​ Cutter insert, full radius ​ Note: 21 21 8482/8484 – Suitable for side/parting off milling cutters ap= 3.1 mm. Type ALU ST900 INOX UNI Cutter insert 21 8478 eShop eShop eShop eShop 10 21B Full radius width 1.5 mm Cutter insert 21 8480 eShop eShop eShop eShop 10 21B Full radius width 2.2 mm Cutter insert 21 8482 eShop eShop eShop eShop 10 21B Full radius width 3 mm Cutter insert 21 8484 eShop eShop eShop eShop 10 21B Full radius width 4 mm Type HU7810 HB7535 HB7635 HB7535 ​ fz mm 0.13 0.1 0.7 – ​ Tolerance ap mm 0 / +0.3 ​ Assembly key No. 27 9940 size 1–3 For side / parting off milling cutters. 27 9940_1–3 668
