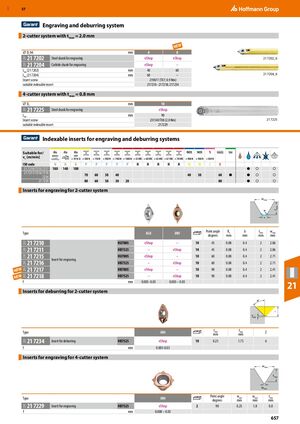

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 657

GBP 57 ​ Engraving and deburring system 2-cutter system with tmax = 2.0 mm ​ NEW ⌀ DS h6 mm 6 8 21 7202 Steel shank for engraving eShop eShop 21Y 21Y 21 7202_6 21 7204 Carbide shank for engraving eShop – Ltot (21 7202) mm 40 60 Ltot (21 7204) mm 60 – 21 7204_6 Insert screw 219877 (TX7; 0.9 Nm) suitable indexable insert 217210 - 217218; 217234 4-cutter system with tmax = 0.8 mm ​ ⌀ DS mm 10 21 7225 Steel shank for engraving eShop 21Y Ltot mm 90 Insert screw 231540 TX8 (2.0 Nm) 21 7225 suitable indexable insert 217229 ​ Indexable inserts for engraving and deburring systems Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K ​ ​ ​ ​ ​ ​ 21 7210/​7215/​7217 180 140 100 ● ○ ○ 21 7211/​7216/​7218 70 60 50 40 40 30 60 ● ● ○ ○ 7234 21 7229 80 60 50 30 20 80 ● ○ ○ Inserts for engraving for 2-cutter system ​ wmax tmax Point angle Re b tmax wmax Type ALU UNI degrees mm mm mm mm 21 7210 HU7805 eShop – 10 45 0.08 0.4 2 2.06 21Y 21Y 21Y 21Y 21Y 21Y 21 7211 HB7525 – eShop 10 45 0.08 0.4 2 2.06 21 7215 Insert for engraving HU7805 eShop – 10 60 0.08 0.4 2 2.71 21 7216 HB7525 – eShop 10 60 0.08 0.4 2 2.71 NEW 21 7217 HB7805 eShop – 10 90 0.08 0.4 2 2.41 NEW 21 7218 HB7525 – eShop 10 90 0.08 0.4 2 2.41 f mm 0.005- 0.03 0.003 – 0.03 ​ ​ ​ ​ ​ ​ Inserts for deburring for 2-cutter system ​ 21 tmin tmin tmax Type UNI Z mm mm 21 7234 Insert for deburring HB7525 eShop 10 0.25 1.75 6 21Y f mm 0.005-0.03 ​ ​ ​ ​ Inserts for engraving for 4-cutter system ​ wmax w tmax t w wmin Point angle wmin wmax tmax Type UNI degrees mm mm mm 21 7229 Insert for engraving HB7525 eShop 2 90 0.25 1.8 0.8 21Y f mm 0.008 – 0.03 ​ ​ ​ ​ ​ 657
