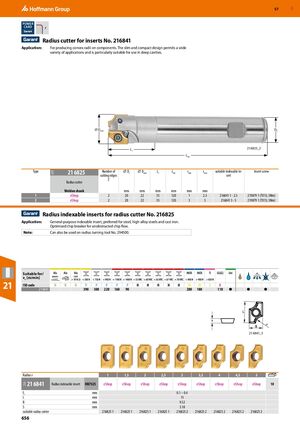

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 656

GBP 57 POWER CARD r Radius cutter for inserts No. 216841 Application: For producing convex radii on components. The slim and compact design permits a wide variety of applications and is particularly suitable for use in deep cavities. ⌀ Dmax DS L1 21 6825_2 Ltot Type 21 6825 Number of ⌀ Ds ⌀ Dmax L1 Ltot rmin rmax suitable indexable in- Insert screw 21O cutting edges sert Z Radius cutter Weldon shank ​ mm mm mm mm mm mm ​ ​ 1 eShop 2 20 22 35 120 1 2.5 216841 1 - 2.5 219879 1 (TX15; 3Nm) 2 eShop 2 20 22 35 120 3 5 216841 3 - 5 219879 1 (TX15; 3Nm) ​ Radius indexable inserts for radius cutter No. 216825 Application: General-purpose indexable insert, preferred for steel, high-alloy steels and cast iron. Optimised chip breaker for unobstructed chip flow. Note: Can also be used on radius turning tool No. 294500. Suitable for/ vc [m/min] 21 ISO code 21 6841 N N N P 390 P 300 P 220 P 160 P 90 H H H H H M 280 M 180 S K 110 ​ ● ​ ​ ● ​ ​ ● ​ 21 6841_5 Radius r 1 1,5 2 2,5 3 3,5 4 4,5 5 21 6841 Radius indexable insert HB7525 eShop eShop eShop eShop eShop eShop eShop eShop eShop 10 21A fz mm 0.1 – 0.4 ​ L mm 15 ​ B mm 9.52 ​ S mm 3.18 ​ suitable radius cutter 216825 1 216825 1 216825 1 216825 1 216825 2 216825 2 216825 2 216825 2 216825 2 ​ 656
