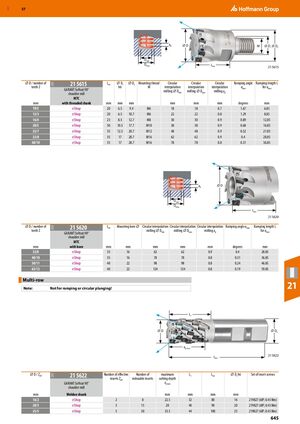

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 645

GBP 57 ap ⌀D M ⌀ D1 ⌀ D2 Dmin Dmax Ltot 21 5615 ⌀ D / number of 21 5615 Ltot ⌀ D1 ⌀ D2 Mounting thread Circular Circular Circular Ramping angle Ramping length L 21O teeth Z h6 M interpolation interpolation interpolation αmax for αmax GARANT Softcut 90° milling ⌀ Dmin milling ⌀ Dmax milling ap shoulder mill MTC mm with threaded shank mm mm mm ​ mm mm mm degrees mm 10/2 eShop 20 6.5 9.4 M6 18 18 0.7 1.67 6.85 12/3 eShop 20 6.5 10.7 M6 22 22 0.8 1.29 8.85 16/4 eShop 23 8.5 12.7 M8 30 30 0.9 0.89 12.85 20/5 eShop 30 10.5 17.7 M10 38 38 0.9 0.68 16.85 25/7 eShop 35 12.5 20.7 M12 48 48 0.9 0.52 21.85 32/8 eShop 35 17 28.7 M16 62 62 0.9 0.4 28.85 40/10 eShop 35 17 28.7 M16 78 78 0.8 0.31 36.85 ap ⌀D Dmin Dmax Ltot 21 5620 ⌀ D / number of 21 5620 Ltot Mounting bore ⌀ Circular interpolation Circular interpolation Circular interpolation Ramping angle αmax Ramping length L 21O teeth Z milling ⌀ Dmin milling ⌀ Dmax milling ap for αmax GARANT Softcut 90° shoulder mill MTC mm with bore mm mm mm mm mm degrees mm 32/8 eShop 35 16 62 62 0.9 0.4 28.85 40/10 eShop 35 16 78 78 0.8 0.31 36.85 50/11 eShop 40 22 98 98 0.8 0.24 46.85 63/12 eShop 40 22 124 124 0.8 0.19 59.85 Multi-row ​ Note: Not for ramping or circular plunging! 21 L1 ⌀D ⌀ DS ap max Ltot 21 5622 ⌀ D / Zeff 21 5622 Number of effective Number of maximum L1 Ltot ⌀ Ds h6 Set of insert screws 21O inserts Zeff indexable inserts cutting depth GARANT Softcut 90° ap max shoulder mill mm Weldon shank ​ ​ mm mm mm mm ​ 16/2 eShop 2 8 22.5 32 80 16 219827 (6IP; 0.45 Nm) 20/3 eShop 3 15 28 40 90 20 219827 (6IP; 0.45 Nm) 25/5 eShop 5 30 33.5 44 100 25 219827 (6IP; 0.45 Nm) 645
