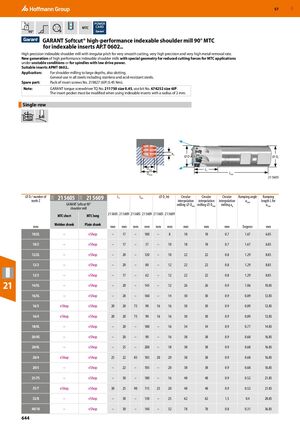

GBP 57 POWER MTC CARD 90° GARANT Softcut® high-performance indexable shoulder mill 90° MTC for indexable inserts AP.T 0602.. High precision indexable shoulder mill with irregular pitch for very smooth cutting, very high precision and very high metal removal rate. New generation of high performance indexable shoulder mills with special geometry for reduced cutting forces for MTC applications under unstable conditions or for spindles with low drive power. Suitable inserts APMT 0602.. Application: For shoulder milling to large depths, also slotting. General use in all steels including stainless and acid-resistant steels. Spare part: Pack of insert screws No. 219827 (6IP; 0.45 Nm). Note: GARANT torque screwdriver TQ No. 211750 size 0.45, use bit No. 674252 size 6IP. The insert pocket must be modified when using indexable inserts with a radius of 2 mm. Single-row ​ ap ⌀D ⌀ Ds Dmin L1 Dmax Ltot 21 5605 ⌀ D / number of 21 5605 21 5609 L1 Ltot ⌀ Ds h6 Circular Circular Circular Ramping angle Ramping 21O 21O teeth Z interpolation interpolation interpolation αmax length L for GARANT Softcut 90° milling ⌀ Dmin milling ⌀ Dmax milling ap αmax shoulder mill 21 5605 21 5609 21 5605 21 5609 21 5605 21 5609 MTC short MTC long Weldon shank Plain shank mm mm mm mm mm mm mm mm mm mm Degrees mm 10/2L – eShop – 17 – 100 – 8 18 18 0.7 1.67 6.85 10/2 – eShop – 17 – 57 – 10 18 18 0.7 1.67 6.85 12/2L – eShop – 20 – 120 – 10 22 22 0.8 1.29 8.85 12/2 – eShop – 20 – 80 – 12 22 22 0.8 1.29 8.85 12/3 – eShop – 17 – 62 – 12 22 22 0.8 1.29 8.85 21 14/3L – eShop – 20 – 145 – 12 26 26 0.9 1.06 10.85 16/3L – eShop – 20 – 160 – 14 30 30 0.9 0.89 12.85 16/3 eShop eShop 20 20 75 90 16 16 30 30 0.9 0.89 12.85 16/4 eShop eShop 20 20 75 90 16 16 30 30 0.9 0.89 12.85 18/4L – eShop – 20 – 180 – 16 34 34 0.9 0.77 14.85 20/4S – eShop – 20 – 90 – 16 38 38 0.9 0.68 16.85 20/4L – eShop – 25 – 200 – 18 38 38 0.9 0.68 16.85 20/4 eShop eShop 25 22 85 105 20 20 38 38 0.9 0.68 16.85 20/5 – eShop – 22 – 105 – 20 38 38 0.9 0.68 16.85 25/7S – eShop – 30 – 180 – 16 48 48 0.9 0.52 21.85 25/7 eShop eShop 30 25 90 115 25 20 48 48 0.9 0.52 21.85 32/8 – eShop – 30 – 130 – 25 62 62 1.5 0.4 28.85 40/10 – eShop – 30 – 140 – 32 78 78 0.8 0.31 36.85 644
