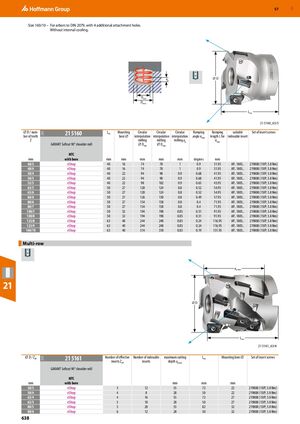

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 638

GBP 57 Size 160/10 – For arbors to DIN 2079, with 4 additional attachment holes. Without internal cooling. ap ⌀D Dmin Dmax Ltot 21 5160_63/5 ⌀ D / num- 21 5160 Ltot Mounting Circular Circular Circular Ramping Ramping suitable Set of insert screws 21O ber of teeth bore ⌀ interpolation interpolation interpolation angle αmax length L for indexable insert Z milling milling milling ap αmax GARANT Softcut 90° shoulder mill ⌀ Dmin ⌀ Dmax MTC mm with bore mm mm mm mm mm degrees mm ​ ​ 40/3 eShop 40 16 74 78 1 0.9 31.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) 40/4 eShop 40 16 74 78 1 0.9 31.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) 50/4 eShop 40 22 94 98 0.9 0.68 41.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) 50/5 eShop 40 22 94 98 0.9 0.68 41.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) 52/5 eShop 40 22 98 102 0.9 0.65 43.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) 63/5 eShop 50 27 120 124 0.8 0.52 54.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) 63/6 eShop 50 27 120 124 0.8 0.52 54.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) 66/6 eShop 50 27 126 130 0.8 0.49 57.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) 80/6 eShop 50 27 154 158 0.8 0.4 71.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) 80/7 eShop 50 27 154 158 0.8 0.4 71.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) 100/7 eShop 50 32 194 198 0.85 0.31 91.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) 100/8 eShop 50 32 194 198 0.85 0.31 91.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) 125/8 eShop 63 40 244 248 0.85 0.24 116.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) 125/9 eShop 63 40 244 248 0.85 0.24 116.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) 160/10 eShop 63 40 314 318 0.85 0.19 151.95 AP.. 1805.. 219808 (15IP; 3.8 Nm) Multi-row ​ ap max 21 ⌀D Ltot 21 5161_63/4 ⌀ D / Zeff 21 5161 Number of effective Number of indexable maximum cutting Ltot Mounting bore ⌀ Set of insert screws 21O inserts Zeff inserts depth ap max GARANT Softcut 90° shoulder mill MTC mm with bore ​ ​ mm mm mm ​ 50/3 eShop 3 12 55 72 22 219808 (15IP; 3.8 Nm) 50/4 eShop 4 8 28 50 22 219808 (15IP; 3.8 Nm) 63/4 eShop 4 16 55 72 27 219808 (15IP; 3.8 Nm) 63/5 eShop 5 10 28 50 27 219808 (15IP; 3.8 Nm) 80/5 eShop 5 20 55 82 32 219808 (15IP; 3.8 Nm) 80/6 eShop 6 12 28 50 32 219808 (15IP; 3.8 Nm) 638
