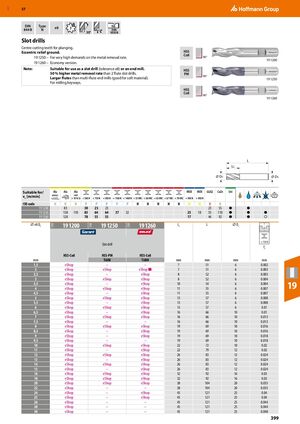

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 399

GBP 57 DIN Type e8 h6 844 B N 3 DIN 30° 1835 B Slot drills Centre cutting teeth for plunging. Eccentric relief ground. HSS Co8 19 1250 – For very high demands on the metal removal rate. 90° 19 1200 19 1260 – Economy version. Note: Suitable for use as a slot drill (tolerance e8) or an end mill. HSS 50 % higher metal removal rate than 2 flute slot drills. PM 90° Larger flutes than multi-flute end mills (good for soft material). 19 1250 For milling keyways. HSS Co8 90° 19 1260 L LC ⌀ DC ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 19 1200 83 30 25 23 23 55 ● ● 19 1250 138 110 83 64 64 37 32 25 18 55 110 ● ● ● 19 1260 120 78 55 55 17 46 92 ● ● ○ ⌀ e8 DC 19 1200 19 1250 19 1260 Lc L ⌀ Ds 12W 11W 11W < 750 N Slot drill fz HSS-Co8 HSS-PM HSS-Co8 mm TiAlN TiAlN mm mm mm mm 1,5 eShop – – 7 51 6 0.002 2 eShop eShop eShop ■ 7 51 6 0.003 2,5 eShop – eShop 8 52 6 0.003 3 eShop eShop eShop 8 52 6 0.004 3,5 4 eShop eShop – eShop eShop eShop 10 11 54 55 6 6 0.004 0.007 19 4,5 eShop – eShop 11 55 6 0.007 5 eShop eShop eShop 13 57 6 0.008 5,5 eShop – eShop 13 57 6 0.008 6 eShop eShop eShop 13 57 6 0.01 6,5 eShop – eShop 16 66 10 0.01 7 eShop eShop eShop 16 66 10 0.013 7,5 eShop – – 16 66 10 0.013 8 eShop eShop eShop 19 69 10 0.016 8,5 eShop – eShop 19 69 10 0.016 9 eShop – eShop 19 69 10 0.018 9,5 eShop – – 19 69 10 0.018 10 eShop eShop eShop 22 72 10 0.02 11 eShop – eShop 22 79 12 0.02 12 eShop eShop eShop 26 83 12 0.024 13 eShop – eShop 26 83 12 0.024 14 eShop eShop eShop 26 83 12 0.024 15 eShop – eShop 26 83 12 0.024 16 eShop eShop eShop 32 92 16 0.03 18 eShop eShop eShop 32 92 16 0.03 20 eShop eShop eShop 38 104 20 0.035 22 eShop – – 38 104 20 0.035 24 eShop – eShop 45 121 25 0.04 25 eShop – eShop 45 121 25 0.04 26 eShop – – 45 121 25 0.044 28 eShop – – 45 121 25 0.044 30 eShop – – 45 121 25 0.048 399
