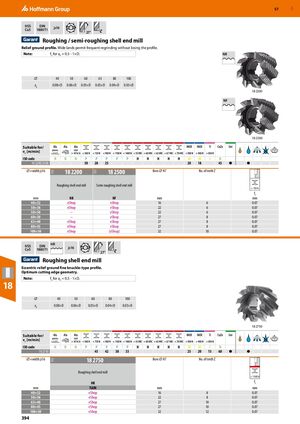

GBP 57 HSS DIN js16 Co5 1880T1 27° Roughing / semi-roughing shell end mill Relief ground profile. Wide lands permit frequent regrinding without losing the profile. Note: fz for ae = 0.5 - 1×D. NR ⌀ 40 50 60 63 80 100 ap 0.08×D 0.06×D 0.05×D 0.05×D 0.04×D 0.03×D 18 2200 NF 18 2500 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 18 2200/​2500 30 28 25 20 18 45 ● ● ⌀×width js16 18 2200 18 2500 Bore ⌀ H7 No. of teeth Z 11U 11U Roughing shell end mill Semi-roughing shell end mill < 750 N fz mm NR NF mm ​ mm 40×32 eShop eShop 16 6 0.07 50×36 eShop eShop 22 6 0.07 50×50 – eShop 22 6 0.07 60×30 – eShop 27 8 0.07 63×40 eShop eShop 27 8 0.07 80×45 eShop eShop 27 8 0.07 100×50 eShop (eShop) 32 10 0.07 HR HSS DIN js16 Co5 1880T1 27° Roughing shell end mill Eccentric relief ground fine knuckle-type profile. Optimum cutting edge geometry. Note: fz for ae = 0.5 - 1×D. 18 ⌀ 40 50 60 80 100 ap 0.08×D 0.06×D 0.05×D 0.04×D 0.03×D 18 2750 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 18 2750 45 42 38 33 25 20 15 60 ● ● ⌀×width js16 18 2750 Bore ⌀ H7 No. of teeth Z 11U Roughing shell end mill < 1100 N HR fz mm TiAlN mm ​ mm 40×32 eShop 16 8 0.07 50×36 eShop 22 8 0.07 63×40 eShop 27 10 0.07 80×45 eShop 27 10 0.07 100×50 eShop 32 12 0.07 394
