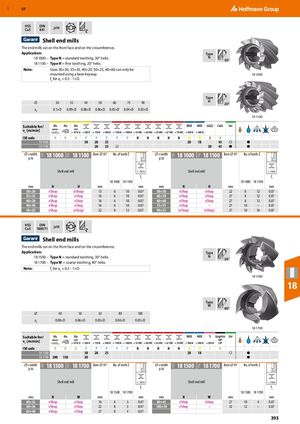

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 393

GBP 57 HSS DIN js16 Co5 841 Shell end mills The end mills cut on the front face and on the circumference. Application: Type 18 1000 – Type N = standard toothing, 30° helix. N 30° 18 1100 – Type H = fine toothing, 20° helix. Note: Sizes 30×30, 35×35, 40×20, 50×25, 60×60 can only be mounted using a bore keyway. 18 1000 fz for ae = 0.5 - 1×D. Type ⌀ 30 35 40 50 60 75 90 H 20° ap 0.1×D 0.09×D 0.08×D 0.06×D 0.05×D 0.04×D 0.03×D 18 1100 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 18 1000 30 28 25 20 18 45 ○ ● 18 1100 28 25 22 20 45 ● ● ⌀×width 18 1000 18 1100 Bore ⌀ H7 No. of teeth Z ⌀×width 18 1000 18 1100 Bore ⌀ H7 No. of teeth Z 11U 11U 11U 11U js16 js16 Shell end mill < 750 N Shell end mill < 750 N fz fz ​ 18 1000 18 1100 ​ ​ 18 1000 18 1100 ​ mm N H mm ​ ​ mm mm N H mm ​ ​ mm 30×30 eShop (eShop) 13 6 10 0.07 50×50 eShop eShop 22 8 12 0.07 35×35 eShop eShop 16 6 10 0.07 60×30 eShop eShop 27 8 12 0.07 40×20 eShop eShop 16 6 10 0.07 60×60 eShop eShop 27 8 12 0.07 40×40 eShop eShop 16 6 10 0.07 75×35 eShop – 27 10 – 0.07 50×25 eShop (eShop) 22 8 12 0.07 90×35 (eShop) (eShop) 27 10 16 0.07 HSS DIN js16 Co5 1880T1 Shell end mills The end mills cut on the front face and on the circumference. Application: Type 18 1500 – Type N = standard toothing, 30° helix. N 30° 18 1700 – Type W = coarse toothing, 40° helix. Note: fz for ae = 0.5 - 1×D. 18 1500 18 Type W 40° ⌀ 40 50 63 80 100 ap 0.08×D 0.06×D 0.05×D 0.04×D 0.03×D 18 1700 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 18 1500 30 28 25 20 18 ○ ● 18 1700 200 150 30 ● ⌀×width 18 1500 18 1700 Bore ⌀ H7 No. of teeth Z ⌀×width 18 1500 18 1700 Bore ⌀ H7 No. of teeth Z 11U 11U 11U 11U js16 js16 Shell end mill < 750 N Shell end mill < 750 N fz fz ​ 18 1500 18 1700 ​ ​ 18 1500 18 1700 ​ mm N W mm ​ ​ mm mm N W mm ​ ​ mm 40×32 eShop eShop 16 6 3 0.07 80×45 eShop eShop 27 10 4 0.07 50×36 eShop eShop 22 8 3 0.07 100×50 eShop – 32 12 – 0.07 63×40 eShop eShop 27 8 4 0.07 ​ ​ ​ ​ ​ ​ ​ 393
