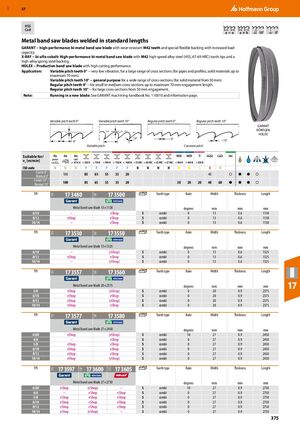

GBP 57 HSS Co8 a=a a≠b 10° 0° ​Metal band saw blades welded in standard lengths GARANT − high-performance bi-metal band saw blade with wear-resistant M42 teeth and special flexible backing with increased load capacity. X-RAY − bi-alfa-cobalt: High-performance bi-metal band saw blade with M42 high-speed alloy steel (HSS, 67-69 HRC) tooth tips and a high-alloy spring steel backing. HOLEX − Production band saw blade with high cutting performance. Application: Variable pitch teeth 0° − very low vibration, for a large range of cross sections (for pipes and profiles, solid materials up to maximum 70 mm). Variable pitch teeth 10° − general purpose for a wide range of cross-sections (for solid material from 50 mm). Regular pitch teeth 0° − for small to medium cross-sections up to maximum 70 mm engagement length. Regular pitch teeth 10° − for large cross-sections from 50 mm engagement. Note: Running in a new blade: See GARANT machining handbook No. 110010 and information page. Variable pitch teeth 0° Variable pitch teeth 10° Regular pitch teeth 0° Regular pitch teeth 10° GARANT RÖNTGEN HOLEX 10° 0° 0° 10° Variable pitch Constant pitch Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ Combi 0° / 100 85 65 55 35 20 40 ○ ● ● ○ Normal 0° Combi 10° / 100 85 65 55 35 20 30 20 20 40 60 ● ● ● ○ Normal 10° TPI 17 3480 17 3500 Tooth type Rake Width Thickness Length 16F 11S Metal band saw blade 13×1138 ​ degrees mm mm mm 6/10 – eShop 5 combi 0 13 0.6 1138 8/12 eShop eShop 5 combi 0 13 0.6 1138 10/14 – eShop 5 combi 0 13 0.6 1138 TPI 17 3530 17 3550 Tooth type Rake Width Thickness Length 16F 11S Metal band saw blade 13×1325 ​ degrees mm mm mm 6/10 – (eShop) 5 combi 0 13 0.6 1325 8/12 eShop eShop 5 combi 0 13 0.6 1325 10/14 – (eShop) 5 combi 0 13 0.6 1325 TPI 17 3557 17 3560 Tooth type Rake Width Thickness Length 16F 11S 5/8 Metal band saw blade 20×2375 eShop (eShop) 5 ​ combi degrees 0 mm 20 mm 0.9 mm 2375 17 6/10 eShop eShop 5 combi 0 20 0.9 2375 8/12 eShop (eShop) 5 combi 0 20 0.9 2375 10/14 eShop eShop 5 combi 0 20 0.9 2375 TPI 17 3577 17 3580 Tooth type Rake Width Thickness Length 16F 11S Metal band saw blade 27×2450 ​ degrees mm mm mm 4/6H eShop (eShop) 5 combi 10 27 0.9 2450 4/6 – eShop 5 combi 0 27 0.9 2450 5/8 eShop eShop 5 combi 0 27 0.9 2450 6/10 eShop eShop 5 combi 0 27 0.9 2450 8/12 eShop eShop 5 combi 0 27 0.9 2450 10/14 eShop (eShop) 5 combi 0 27 0.9 2450 TPI 17 3597 17 3600 17 3605 Tooth type Rake Width Thickness Length 16F 12S 11S Metal band saw blade 27×2750 ​ degrees mm mm mm 4/6H eShop (eShop) – 5 combi 10 27 0.9 2750 4/6 – eShop eShop 5 combi 0 27 0.9 2750 5/8 eShop eShop eShop 5 combi 0 27 0.9 2750 6/10 eShop eShop eShop 5 combi 0 27 0.9 2750 8/12 eShop eShop eShop 5 combi 0 27 0.9 2750 10/14 eShop (eShop) – 5 combi 0 27 0.9 2750 375
