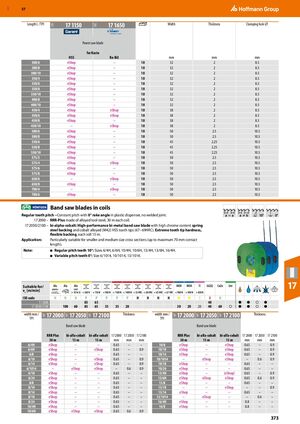

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 373

GBP 57 Length L / TPI 17 1150 17 1650 Width Thickness Clamping hole ⌀ 16E 11R Power saw blade for Kasto HSS Ko-Bi3 mm mm mm 300/6 eShop – 10 32 2 8.5 300/8 eShop – 10 32 2 8.5 300/10 eShop – 10 32 2 8.5 350/4 eShop – 10 32 2 8.5 350/6 eShop – 10 32 2 8.5 350/8 eShop – 10 32 2 8.5 350/10 eShop – 10 32 2 8.5 400/8 eShop – 10 32 2 8.5 400/10 eShop – 10 32 2 8.5 450/4 eShop eShop 10 38 2 8.5 450/6 eShop eShop 10 38 2 8.5 450/8 eShop – 10 38 2 8.5 450/10 – eShop 10 38 2 8.5 500/6 eShop – 10 50 2.5 10.5 500/8 eShop – 10 50 2.5 10.5 550/6 eShop – 10 45 2.25 10.5 550/8 eShop – 10 45 2.25 10.5 550/10 eShop – 10 45 2.25 10.5 575/3 eShop – 10 50 2.5 10.5 575/4 eShop eShop 10 50 2.5 10.5 575/6 eShop – 10 50 2.5 10.5 575/8 eShop – 10 50 2.5 10.5 650/6 – eShop 10 50 2.5 10.5 650/8 eShop – 10 50 2.5 10.5 700/4 – eShop 10 50 2.5 10.5 700/6 eShop – 10 50 2.5 10.5 ​ Band saw blades in coils Regular tooth pitch −Constant pitch with 0° rake angle in plastic dispenser, no welded joint. a=a a≠b 10° 0° 17 2000 – RRR-Plus made of alloyed tool steel, 30 m each coil. 17 2050/2100 – bi-alpha-cobalt: High-performance bi-metal band saw blade with high chrome content spring steel backing and cobalt alloyed (M42) HSS tooth tips (67−69HRC). Extreme tooth tip hardness, flexible backing, each roll 15 m. Application: Particularly suitable for smaller and medium size cross sections (up to maximum 70 mm contact length). Note: Regular pitch teeth 10°: Sizes 6/4H, 6/6H, 10/4H, 10/6H, 13/4H, 13/6H, 16/4H. ■  ■ Variable pitch teeth 0°: Size 6/1014, 10/1014, 13/1014. Suitable for/ vc [m/min] 17 ISO code N N N P P P P P H H H H M M S K N ​ ​ ​ ​ ​ ​ 17 2000 85 65 40 ● ● ○ ● 17 2050/​2100 100 60 85 65 55 35 20 30 20 20 40 60 ○ ● ● ○ ● width mm / 17 2000 17 2050 17 2100 Thickness width mm / 17 2000 17 2050 17 2100 Thickness 16F 16F 16F 16F 16F 16F TPI TPI Band saw blade Band saw blade RRR Plus bi-alfa-cobalt bi-alfa-cobalt 17 2000 17 2050 17 2100 RRR Plus bi-alfa-cobalt bi-alfa-cobalt 17 2000 17 2050 17 2100 30 m 15 m 15 m mm mm mm 30 m 15 m 15 m mm mm mm 6/4H eShop – – 0.65 – – 10/8 eShop – eShop 0.65 – 0.9 6/6H eShop – eShop 0.65 – 0.9 10/10 eShop – eShop 0.65 – 0.9 6/8 eShop – – 0.65 – – 10/14 eShop – eShop 0.65 – 0.9 6/10 eShop – eShop 0.65 – 0.9 10/1014 – eShop eShop – 0.6 0.9 6/14 eShop – eShop 0.65 – 0.9 10/18 eShop – – 0.65 – – 6/1014 – eShop eShop – 0.6 0.9 10/24 eShop – – 0.65 – – 6/18 eShop – – 0.65 – – 13/4H eShop – (eShop) 0.65 – 0.9 6/24 eShop – – 0.65 – – 13/6H eShop eShop eShop 0.65 0.6 0.9 8/8 eShop – – 0.65 – – 13/8 eShop – – 0.65 – – 8/10 eShop – – 0.65 – – 13/10 – – eShop – – 0.9 8/14 eShop – – 0.65 – – 13/14 eShop – – 0.65 – – 8/18 eShop – – 0.65 – – 13/1014 – eShop – – 0.6 – 8/24 eShop – – 0.65 – – 16/4H eShop – – 0.8 – – 10/4H eShop – – 0.65 – – 16/8 eShop – – 0.8 – – 10/6H eShop eShop eShop 0.65 0.6 0.9 ​ ​ ​ ​ ​ ​ ​ 373
