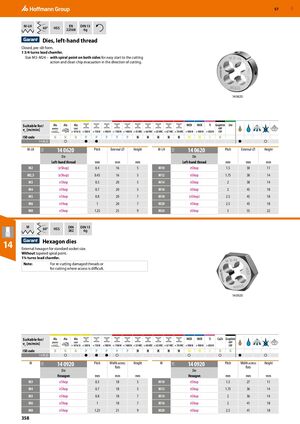

GBP 57 M-LH EN DIN 13 60° HSS 22568 6g Dies, left-hand thread Closed, pre-slit form. 1 3/4 turns lead chamfer. Size M3–M24 – with spiral point on both sides for easy start to the cutting action and clean chip evacuation in the direction of cutting. 14 0620 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 14 0620 ○ ● ● ● ○ M-LH 14 0620 Pitch External ⌀ Height M-LH 14 0620 Pitch External ⌀ Height 11K 11K Die Die Left-hand thread mm mm mm Left-hand thread mm mm mm M2 (eShop) 0.4 16 5 M10 eShop 1.5 30 11 M2,5 (eShop) 0.45 16 5 M12 eShop 1.75 38 14 M3 eShop 0.5 20 5 M14 eShop 2 38 14 M4 eShop 0.7 20 5 M16 eShop 2 45 18 M5 eShop 0.8 20 7 M18 (eShop) 2.5 45 18 M6 eShop 1 20 7 M20 eShop 2.5 45 18 M8 eShop 1.25 25 9 M24 eShop 3 55 22 M DIN DIN 13 60° HSS 382 6g Hexagon dies 14 External hexagon for standard socket size. Without tapered spiral point. 1¾ turns lead chamfer. Note: For re-cutting damaged threads or for cutting where access is difficult. 14 0920 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N N ​ ​ ​ ​ ​ 14 0920 ○ ● ● ● ○ ○ ○ ● ○ M 14 0920 Pitch Width across Height M 14 0920 Pitch Width across Height 11K 11K flats flats Die Die Hexagon mm mm mm Hexagon mm mm mm M3 eShop 0.5 18 5 M10 eShop 1.5 27 11 M4 eShop 0.7 18 5 M12 eShop 1.75 36 14 M5 eShop 0.8 18 7 M14 eShop 2 36 14 M6 eShop 1 18 7 M16 eShop 2 41 18 M8 eShop 1.25 21 9 M20 eShop 2.5 41 18 358
