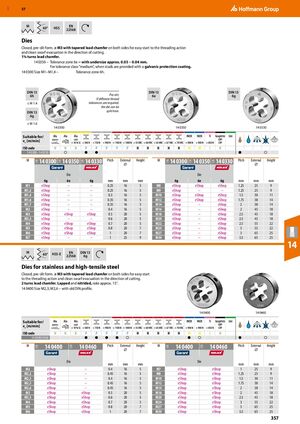

GBP 57 M EN 60° HSS 22568 ​Dies Closed, pre-slit form. ≥ M3 with tapered lead chamfer on both sides for easy start to the threading action and clean swarf evacuation in the direction of cutting. 1¾ turns lead chamfer. 14 0350 – Tolerance zone 6e = with undersize approx. 0.03 − 0.04 mm. For tolerance class “medium”, when studs are provided with a galvanic protection coating. 14 0300 Size M1–M1,4 – Tolerance zone 6h. DIN 13 DIN 13 DIN 13 6h Pre-slit: 6e 6g If different thread ≤ M 1.4 tolerances are required, the die can be DIN 13 split here. 6g ≤ M 1.6 14 0300 14 0350 14 0330 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 14 0300–​14 0350 ○ ● ● ● ○ M 14 0300 14 0350 14 0330 Pitch External Height M 14 0300 14 0350 14 0330 Pitch External Height 12K 12K 11K 11K 11K 11K ⌀ ⌀ Die Die 6g 6e 6g mm mm mm 6g 6e 6g mm mm mm M1 eShop – – 0.25 16 5 M8 eShop eShop eShop 1.25 25 9 M1,2 eShop – – 0.25 16 5 M9 eShop – – 1.25 25 9 M1,4 eShop – – 0.3 16 5 M10 eShop eShop eShop 1.5 30 11 M1,6 eShop – – 0.35 16 5 M12 eShop eShop eShop 1.75 38 14 M1,7 eShop – – 0.35 16 5 M14 eShop – eShop 2 38 14 M2 eShop – – 0.4 16 5 M16 eShop – eShop 2 45 18 M3 eShop eShop eShop 0.5 20 5 M18 eShop – eShop 2.5 45 18 M3,5 eShop – – 0.6 20 5 M20 eShop – eShop 2.5 45 18 M4 eShop eShop eShop 0.7 20 5 M22 eShop – eShop 2.5 55 22 M5 eShop eShop eShop 0.8 20 7 M24 eShop – eShop 3 55 22 M6 eShop eShop eShop 1 20 7 M27 eShop – eShop 3 65 25 M7 eShop – – 1 25 9 M30 eShop – eShop 3.5 65 25 14 M HSS-E EN DIN 13 60° 22568 6g ​Dies for stainless and high-tensile steel Closed, pre-slit form. ≥ M3 with tapered lead chamfer on both sides for easy start to the threading action and clean swarf evacuation in the direction of cutting. 2 turns lead chamfer. Lapped and nitrided, rake approx. 15°. 14 0400 Size M2,3; M2,6 – with old DIN profile. 14 0400 14 0460 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 14 0400/​0460 ● ● ● ● ○ ● ○ ● ○ M 14 0400 14 0460 Pitch External Height M 14 0400 14 0460 Pitch External Height 12K 12K 11K 11K ⌀ ⌀ Die Die mm mm mm mm mm mm M2 eShop – 0.4 16 5 M7 eShop eShop 1 25 9 M2,2 eShop – 0.45 16 5 M8 eShop eShop 1.25 25 9 M2,3 eShop – 0.4 16 5 M10 eShop eShop 1.5 30 11 M2,5 eShop – 0.45 16 5 M12 eShop eShop 1.75 38 14 M2,6 eShop – 0.45 16 5 M14 eShop eShop 2 38 14 M3 eShop eShop 0.5 20 5 M16 eShop eShop 2 45 18 M3,5 eShop eShop 0.6 20 5 M20 eShop eShop 2.5 45 18 M4 eShop eShop 0.7 20 5 M24 eShop eShop 3 55 22 M5 eShop eShop 0.8 20 7 M27 eShop eShop 3 65 25 M6 eShop eShop 1 20 7 M30 eShop eShop 3.5 65 25 357
