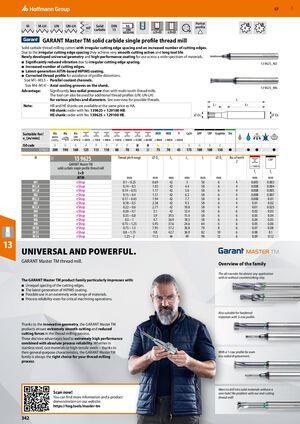

GBP 57 Partial M M-LH UN UN-LH Solid DIN h6 profile 60° carbide 13 DIN 4 6 6535 HA ≤3×D ≤3×D GARANT Master TM solid carbide single profile thread mill Solid carbide thread milling cutters with irregular cutting edge spacing and an increased number of cutting edges. Due to the irregular cutting edge spacing they achieve very smooth cutting action and long tool life. Newly developed universal geometry and high-performance coating for use across a wide spectrum of materials. ■ Significantly reduced vibration due to irregular cutting edge spacing. 13 9625_M3 ■ Increased number of cutting edges. ■ Latest-generation AlTiN-based HIPIMS coating. ■ Corrected thread profile for avoidance of profile distortions. Size M1–M3,5 – Parallel coolant channels. Size M4–M14 – Axial cooling grooves on the shank. 13 9625_M6 Advantage: Significantly less radial pressure than with multi-tooth thread mills. The tool can also be used for additional thread profiles (UN; UN-LH) for various pitches and diameters. See overview for possible threads. L Note: HB and HE shanks are available at the same price as HA. L1 LS HB shank: order with No. 139625 + 129100 HB. HE shank: order with No. 139625 + 129100 HE. ⌀ DC ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H M M S N N N N ​ ​ ​ ​ ​ ​ 13 9625 200 190 160 125 115 110 80 70 45 35 75 70 45 175 100 100 150 ● ● ● ● M 13 9625 Thread pitch range ⌀ DC Ls L1 L ⌀ Ds No. of teeth 11D CRP Z GARANT Master TM < 1400 N solid carbide single profile thread mill 3×D fz fz AlTiN mm mm mm mm mm mm ​ mm mm M1 eShop 0.1 – 0.25 0.69 42 3 58 6 4 0.005 0.003 M1,4 eShop 0.14 – 0.3 1.03 42 4.4 58 6 4 0.008 0.004 M1,6 eShop 0.14 – 0.35 1.17 42 5.6 58 6 4 0.008 0.005 M2 eShop 0.15 – 0.4 1.51 42 6.2 58 6 4 0.008 0.007 M2,5 eShop 0.17 – 0.45 1.94 42 7.7 58 6 4 0.008 0.01 M3 eShop 0.18 – 0.5 2.38 42 9.3 58 6 4 0.01 0.02 M3,5 eShop 0.22 – 0.6 2.71 42 10.8 58 6 4 0.01 0.025 M4 eShop 0.26 – 0.7 3.1 42 12.4 58 6 6 0.02 0.03 M5 eShop 0.35 – 0.8 3.9 39.5 15.4 58 6 6 0.03 0.04 M6 eShop 0.5 – 1 4.7 36.9 18.5 58 6 6 0.04 0.05 M8 eShop 0.75 – 1.25 5.95 37.6 24.6 64 6 6 0.05 0.06 M10 eShop 0.75 – 1.5 7.95 37.2 30.8 70 8 6 0.07 0.08 M12 eShop 0.8 – 1.75 9.8 42.7 36.9 82 10 6 0.08 0.1 M14 eShop 1.25 – 2 11.5 46 49 98 12 6 0.09 0.12 13 UNIVERSAL AND POWERFUL. GARANT Master TM thread mill. Overview of the family The all-rounder for almost any application with or without countersinking step. The GARANT Master TM product family particularly impresses with: ■ Unequal spacing of the cutting edges. ■ The latest generation of HiPIMS coating. ■ Possible use in an extremely wide range of materials. ■ Process reliability even for critical machining operations. Also suitable for hardened materials with 3-row profile. Thanks to the innovative geometry, the GARANT Master TM products ensure extremely smooth cutting and reduced cutting forces in the thread milling process. These decisive advantages lead to extremely high performance combined with absolute process reliability. Whether in stainless steel, cast materials or high-tensile steels – thanks to their general-purpose characteristics, the GARANT Master TM With a 1-row profile for even family is always the right choice for your thread milling less radial displacement. process. Want to drill into solid materials without a Scan now! core hole? No problem with our end cutting You can find more information and a product thread mill! demonstration on our website: https://hog.tools/master-tm 342
