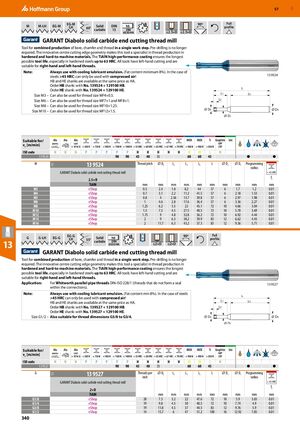

GBP 57 EG-M 90º Full M M-LH EG-M LH Solid DIN h6 profile 60° carbide 13 DIN 4 6535 HA ≤2.5×D ≤2.5×D GARANT Diabolo solid carbide end cutting thread mill Tool for combined production of bore, chamfer and thread in a single work step. Pre-drilling is no longer required. The innovative centre cutting edge geometry makes this tool a specialist in thread production in hardened and hard-to-machine materials. The TiAlN high-performance coating ensures the longest possible tool life, especially in hardened steels up to 63 HRC. All tools have left-hand cutting and are suitable for right-hand and left-hand threads. Note: Always use with cooling lubricant emulsion. (Fat content minimum 8%). In the case of steels >45 HRC: can only be used with compressed air! 13 9524 HB and HE shanks are available at the same price as HA. Order HB shank: with No. 139524 + 129100 HB. L Order HE shank: with No. 139524 + 129100 HE. L1 LS Size M3 – Can also be used for thread size MF4×0.5. Size M6 – Can also be used for thread size MF7×1 and MF8×1. LC Size M8 – Can also be used for thread size MF10×1.25. ⌀ DC ⌀ DS Size M10 – Can also be used for thread size MF12×1.5. ⌀ D1 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 9524 90 90 45 40 35 60 60 45 ● ● M 13 9524 Thread pitch ⌀ DC Lc L1 Ls L ⌀ Ds ⌀ D1 Programming 11J radius GARANT Diabolo solid carbide end cutting thread mill < 65 HRC fz 2.5×D TiAlN mm mm mm mm mm mm mm mm mm mm M3 eShop 0.5 2.4 1.8 8.2 44 57 6 1.7 1.2 0.01 M4 eShop 0.7 3.1 2.2 11.2 41.5 57 6 2.18 1.53 0.01 M5 eShop 0.8 4 2.56 13.7 39.8 57 6 2.97 1.98 0.01 M6 eShop 1 4.6 2.8 17.6 36.4 57 6 3.36 2.27 0.01 M8 eShop 1.25 6.2 3.5 22 45.1 72 10 4.66 3.04 0.01 M10 eShop 1.5 7.5 4.5 27.5 40.5 72 10 5.78 3.69 0.01 M12 eShop 1.75 9 4.8 32.8 36.2 72 10 6.92 4.44 0.01 M14 eShop 2 9 6.3 38.2 39.9 83 12 6.62 4.43 0.01 M16 eShop 2 11.7 6.3 43.2 37.3 83 12 9.36 5.71 0.01 EG-G 90º Full G G-LH EG-G LH Solid h6 profile 55° carbide 4 13 DIN 6535 HA ≤2×D ≤2×D GARANT Diabolo solid carbide end cutting thread mill Tool for combined production of bore, chamfer and thread in a single work step. Pre-drilling is no longer required. The innovative centre cutting edge geometry makes this tool a specialist in thread production in hardened and hard-to-machine materials. The TiAIN high-performance coating ensures the longest possible tool life, especially in hardened steels up to 63 HRC. All tools have left-hand cutting and are suitable for right-hand and left-hand threads. Application: For Whitworth parallel pipe threads DIN-ISO 228/1 (threads that do not form a seal 13 9527 within the connections). Note: Always use with cooling lubricant emulsion. (Fat content min 8%). In the case of steels L >45 HRC can only be used with compressed air! L1 LS HB and HE shanks are available at the same price as HA. Order HB shank: with No. 139527 + 129100 HB. LC Order HE shank: with No. 139527 + 129100 HE. Size G1/2 – Also suitable for thread dimensions G5/8 to G3/4. ⌀ DC ⌀ DS ⌀ D1 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 9527 90 90 45 40 35 60 60 45 ● ● G 13 9527 Threads per ⌀ DC Lc L1 Ls L ⌀ Ds ⌀ D1 Programming 11J inch radius GARANT Diabolo solid carbide end cutting thread mill < 65 HRC fz 2×D TiAlN ​ mm mm mm mm mm mm mm mm mm G1/8 eShop 28 7.3 3.2 22 47.6 72 10 5.9 3.65 0.01 G1/4 eShop 19 9.8 4.5 30 40.5 72 10 7.74 4.9 0.01 G3/8 eShop 19 11.8 4.5 37 44.5 83 12 9.76 5.9 0.01 G1/2 eShop 14 15.7 6 47 51.2 100 16 12.92 7.85 0.01 340
