Режущие и зажимные инструменты Hoffmann Group 2026 - страница 333

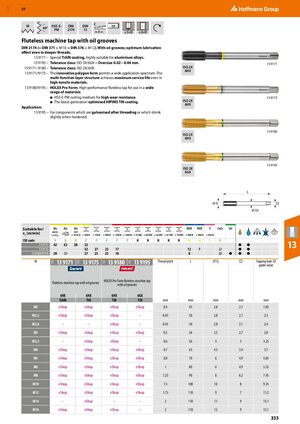

GBP 57 M C 60° HSS-E- DIN DIN h9 PM 2174 13 3 ≤3×D ≤3×D ​Fluteless machine tap with oil grooves DIN 2174 (≈ DIN 371 ≤ M10; ≈ DIN 376 ≥ M12). With oil grooves; optimum lubrication effect even in deeper threads. 13 9171 – Special TiAlN coating, highly suitable for aluminium alloys. 13 9195 – Tolerance class: ISO 3X/6GX = Oversize 0.02− 0.04 mm. 13 9171 13 9171–9180 – Tolerance class: ISO 2X/6HX. ISO 2X 6HX 13 9171/9175 – The innovative polygon form permits a wide application spectrum. The multi-function layer structure achieves maximum service life even in high-tensile materials. 13 9180/9195 – HOLEX Pro Form: High-performance fluteless tap for use in a wide range of materials. ■ HSS-E-PM cutting medium for high wear resistance. 13 9175 ■ The latest-generation optimised HIPIMS TiN coating. ISO 2X 6HX Application: 13 9195 – For components which are galvanised after threading or which shrink slightly when hardened. 13 9180 ISO 2X 6HX 13 9195 ISO 3X 6GX L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 9171 13 9175 42 42 28 32 32 27 22 17 12 7 22 ● ● ● ● 13 13 9180/​9195 20 20 27 25 25 10 8 20 ● ● ● M 13 9171 13 9175 13 9180 13 9195 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11H 11H 12I 12I guide value HOLEX Pro Form fluteless machine tap Fluteless machine tap with oil grooves with oil grooves 6HX 6HX 6HX 6GX TiAlN TiN TiN TiN mm mm mm mm mm M2 eShop eShop eShop eShop 0.4 45 2.8 2.1 1.85 M2,5 eShop eShop eShop – 0.45 50 2.8 2.1 2.3 M2,6 – – eShop – 0.45 50 2.8 2.1 2.4 M3 eShop eShop eShop eShop 0.5 56 3.5 2.7 2.8 M3,5 – eShop eShop – 0.6 56 4 3 3.25 M4 eShop eShop eShop eShop 0.7 63 4.5 3.4 3.7 M5 eShop eShop eShop eShop 0.8 70 6 4.9 4.65 M6 eShop eShop eShop eShop 1 80 6 4.9 5.55 M8 eShop eShop eShop eShop 1.25 90 8 6.2 7.45 M10 eShop eShop eShop eShop 1.5 100 10 8 9.35 M12 eShop eShop eShop eShop 1.75 110 9 7 11.2 M14 – eShop – – 2 110 11 9 13.1 M16 eShop eShop eShop – 2 110 12 9 15.1 333
