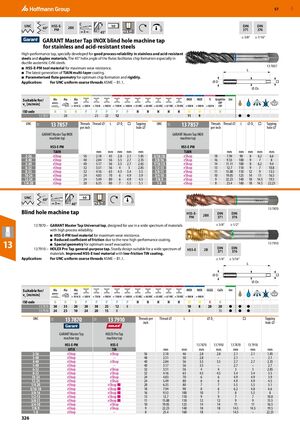

GBP 57 UNC C 60° HSS-E- 2BX h9 DIN DIN PM 371 376 3 45° ≤2.5×D ≤ 3/8“ ≥ 7/16“ GARANT Master Tap INOX blind hole machine tap for stainless and acid-resistant steels High-performance tap, specially developed for good process reliability in stainless and acid-resistant steels and duplex materials. The 45° helix angle of the flutes facilitates chip formation especially in ductile austenitic CrNi steels. ​ 13 7857 ■ HSS-E-PM tool material for maximum wear resistance. L ■ The latest generation of TiAlN multi-layer coating. ■ Parameterised flute geometry for optimum chip formation and rigidity. Application: For UNC uniform coarse threads ASME − B1.1. ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 7857 28 23 23 12 11 9 ● ● UNC 13 7857 Threads Thread ⌀ L ⌀ Ds □ Tapping UNC 13 7857 Threads Thread ⌀ L ⌀ Ds □ Tapping 11I 11I per inch hole ⌀ per inch hole ⌀ GARANT Master Tap INOX GARANT Master Tap INOX machine tap machine tap HSS-E-PM HSS-E-PM TiAlN ​ mm mm mm mm mm TiAlN ​ mm mm mm mm mm 2-56 eShop 56 2.18 45 2.8 2.1 1.85 5/16-18 eShop 18 7.94 90 8 6.2 6.6 4-40 eShop 40 2.84 56 3.5 2.7 2.35 3/8-16 eShop 16 9.53 100 9 7 8 5-40 eShop 40 3.17 56 3.5 2.7 2.65 7/16-14 eShop 14 11.11 100 8 6.2 9.4 6-32 eShop 32 3.51 56 4 3 2.85 1/2-13 eShop 13 12.7 110 9 7 10.8 8-32 eShop 32 4.16 63 4.5 3.4 3.5 5/8-11 eShop 11 15.88 110 12 9 13.5 10-24 eShop 24 4.83 70 6 4.9 3.9 3/4-10 eShop 10 19.05 125 14 11 16.5 12-24 eShop 24 5.49 80 6 4.9 4.5 7/8-9 eShop 9 22.23 140 18 14.5 19.5 1/4-20 eShop 20 6.35 80 7 5.5 5.1 1-8 eShop 8 25.4 160 18 14.5 22.25 UNC C 60° h9 3 40° ≤2.5×D ​ 13 7870 ​Blind hole machine tap HSS-E- 2BX DIN DIN PM 371 376 13 7870 – GARANT Master Tap Universal tap, designed for use in a wide spectrum of materials ≤ 3/8“ ≥ 1/2“ with high process reliability. ■ HSS-E-PM tool material for maximum wear resistance. ■ Reduced coefficient of friction due to the new high-performance coating. 13 ■ Special geometry for optimum swarf evacuation. 13 7910 – HOLEX Pro Tap general-purpose tap. Sturdy design suitable for a wide spectrum of HSS-E 2B DIN 371 DIN 376 ​ 13 7910 materials. Improved HSS-E tool material with low-friction TiN coating. Application: For UNC uniform coarse threads ASME − B1.1. ≤ 1/4“ ≥ 5/16“ L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 13 7870 30 35 20 30 30 25 12 8 10 8 20 20 ● ● ● 13 7910 24 25 10 24 20 15 8 8 15 ● ● ● UNC 13 7870 13 7910 Threads per Thread ⌀ L ⌀ Ds □ Tapping 12I 11I inch hole ⌀ GARANT Master Tap HOLEX Pro Tap machine tap machine tap HSS-E-PM HSS-E ​ ​ ​ 13 7870 13 7910 13 7870 13 7910 ​ AlTiX TiN ​ mm mm mm mm mm mm mm 2-56 eShop eShop 56 2.18 46 2.8 2.8 2.1 2.1 1.85 3-48 eShop – 48 2.51 50 2.8 – 2.1 – 2.1 4-40 eShop eShop 40 2.84 56 3.5 3.5 2.7 2.7 2.35 5-40 eShop – 40 3.17 56 3.5 – 2.7 – 2.7 6-32 eShop eShop 32 3.51 56 4 4 3 3 2.85 8-32 eShop eShop 32 4.16 63 4.5 4.5 3.4 3.4 3.5 10-24 eShop eShop 24 4.83 70 6 6 4.9 4.9 3.9 12-24 eShop eShop 24 5.49 80 6 6 4.9 4.9 4.5 1/4-20 eShop eShop ■ 20 6.35 80 7 7 5.5 5.5 5.1 5/16-18 eShop eShop ■ 18 7.94 90 8 6 6.2 4.8 6.6 3/8-16 eShop eShop ■ 16 9.53 100 10 7 8 5.5 8 1/2-13 eShop eShop ■ 13 12.7 110 9 9 7 7 10.8 5/8-11 eShop eShop ■ 11 15.88 110 12 12 9 9 13.5 3/4-10 eShop eShop 10 19.05 125 14 14 11 11 16.5 7/8-9 eShop eShop 9 22.23 140 18 18 14.5 14.5 19.5 1-8 eShop – 8 25.4 160 18 – 14.5 – 22.25 326
