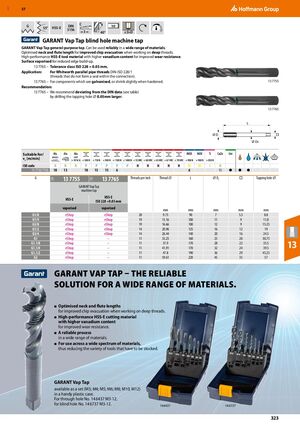

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 323

GBP 57 G C 55° HSS-E DIN h9 5156 3 40° ≤3×D GARANT Vap Tap blind hole machine tap GARANT Vap Tap general-purpose tap. Can be used reliably in a wide range of materials. Optimised neck and flute length for improved chip evacuation when working on deep threads. High-performance HSS‑E tool material with higher vanadium content for improved wear resistance. Surface vaporised for reduced edge build-up. 13 7765 – Tolerance class ISO 228 + 0.05 mm. Application: For Whitworth parallel pipe threads DIN-ISO 228/1 (threads that do not form a seal within the connection). 13 7765 – For components which are galvanised, or shrink slightly when hardened. 13 7755 Recommendation: 13 7765 – We recommend deviating from the DIN data (see table) by drilling the tapping hole ⌀ 0.05mm larger. 13 7765 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 7755/​7765 18 13 18 15 15 6 6 15 ● ● ● G 13 7755 13 7765 Threads per inch Thread ⌀ L ⌀ Ds □ Tapping hole ⌀ 13V 13V GARANT Vap Tap machine tap HSS-E HSS-E ISO 228 +0.05 mm vaporised vaporised ​ mm mm mm mm mm G1/8 eShop eShop 28 9.73 90 7 5.5 8.8 G1/4 eShop eShop 19 13.16 100 11 9 11.8 G3/8 eShop eShop 19 16.66 100 12 9 15.25 G1/2 eShop eShop 14 20.96 125 16 12 19 G3/4 eShop eShop 14 26.44 140 20 16 24.5 G1 eShop – 11 33.25 160 25 20 30.75 G1.1/8 G1.1/4 eShop eShop – – 11 11 37.9 41.91 170 170 28 32 22 24 35.5 39.5 13 G1.1/2 eShop – 11 47.8 190 36 29 45.25 G2 eShop – 11 59.61 220 45 35 57 GARANT VAP TAP – THE RELIABLE SOLUTION FOR A WIDE RANGE OF MATERIALS. ■ Optimised neck and flute lengths for improved chip evacuation when working on deep threads. ■ High-performance HSS-E cutting material with higher vanadium content for improved wear resistance. ■ A reliable process in a wide range of materials. ■ For use across a wide spectrum of materials, thus reducing the variety of tools that have to be stocked. GARANT Vap Tap available as a set (M3; M4; M5; M6; M8; M10; M12) in a handy plastic case. For through hole No. 14 6437 M3-12, for blind hole No. 14 6737 M3-12. 14 6437 14 6737 323
