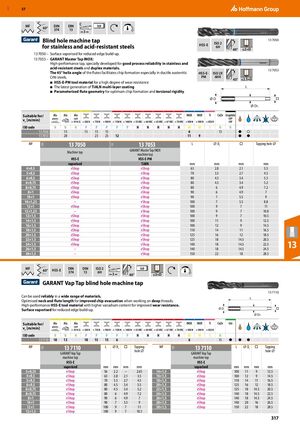

GBP 57 MF C 60° DIN DIN h9 374 13 3 Blind hole machine tap ISO 2 13 7050 HSS-E for stainless and acid-resistant steels 6H 40° ≤2×D 13 7050 – Surface vaporised for reduced edge build-up. 13 7053 – GARANT Master Tap INOX: High-performance tap, specially developed for good process reliability in stainless and acid-resistant steels and duplex materials. 13 7053 The 45° helix angle of the flutes facilitates chip formation especially in ductile austenitic HSS-E- ISO 2X CrNi steels. PM 6HX 45° ≤2.5×D ■ HSS-E-PM tool material for a high degree of wear resistance ■ The latest generation of TiALN multi-layer coating L ■ Parameterised flute geometry for optimum chip formation and torsional rigidity ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N N ​ ​ ​ ​ ​ 13 7050 13 15 15 15 6 13 ● ○ 13 7053 28 23 23 12 11 9 ● ● MF 13 7050 13 7053 L ⌀ Ds □ Tapping hole ⌀ 11H 11I GARANT Master Tap INOX Machine tap machine tap HSS-E HSS-E-PM vaporised TiAlN mm mm mm mm 4×0,5 eShop eShop 63 2.8 2.1 3.5 5×0,5 eShop eShop 70 3.5 2.7 4.5 6×0,5 eShop eShop 80 4.5 3.4 5.5 6×0,75 eShop eShop 80 4.5 3.4 5.2 8×0,75 eShop eShop 80 6 4.9 7.2 8×1 eShop eShop 90 6 4.9 7 10×1 eShop eShop 90 7 5.5 9 10×1,25 – eShop 100 7 5.5 8.8 12×1 eShop eShop 100 9 7 11 12×1,25 – eShop 100 9 7 10.8 12×1,5 eShop eShop 100 9 7 10.5 14×1,5 eShop eShop 100 11 9 12.5 16×1,5 eShop eShop 100 12 9 14.5 18×1,5 eShop eShop 110 14 11 16.5 20×1,5 eShop eShop 125 16 12 18.5 22×1,5 eShop eShop 125 18 14.5 20.5 24×1,5 26×1,5 eShop – eShop eShop 140 140 18 18 14.5 14.5 22.5 24.5 13 30×1,5 – eShop 150 22 18 28.5 MF C 60° HSS-E DIN DIN ISO 2 h9 374 13 6H 3 40° ≤3×D GARANT Vap Tap blind hole machine tap 13 7110 Can be used reliably in a wide range of materials. L Optimised neck and flute length for improved chip evacuation when working on deep threads. High-performance HSS-E tool material with higher vanadium content for improved wear resistance. Surface vaporised for reduced edge build-up. ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 7110 18 13 18 15 15 6 6 15 ● ● ● MF 13 7110 L ⌀ Ds □ Tapping MF 13 7110 L ⌀ Ds □ Tapping 13V 13V hole ⌀ hole ⌀ GARANT Vap Tap GARANT Vap Tap machine tap machine tap HSS-E HSS-E vaporised mm mm mm mm vaporised mm mm mm mm 3×0,35 eShop 56 2.2 – 2.65 14×1,5 eShop 100 11 9 12.5 4×0,5 eShop 63 2.8 2.1 3.5 16×1,5 eShop 100 12 9 14.5 5×0,5 eShop 70 3.5 2.7 4.5 18×1,5 eShop 110 14 11 16.5 6×0,5 eShop 80 4.5 3.4 5.5 20×1,5 eShop 125 16 12 18.5 6×0,75 eShop 80 4.5 3.4 5.2 22×1,5 eShop 125 18 14.5 20.5 8×0,75 eShop 80 6 4.9 7.2 24×1,5 eShop 140 18 14.5 22.5 8×1 eShop 90 6 4.9 7 26×1,5 eShop 140 18 14.5 24.5 10×1 eShop 90 7 5.5 9 28×1,5 eShop 140 20 16 26.5 12×1 eShop 100 9 7 11 30×1,5 eShop 150 22 18 28.5 12×1,5 eShop 100 9 7 10.5 317
