Режущие и зажимные инструменты Hoffmann Group 2026 - страница 312

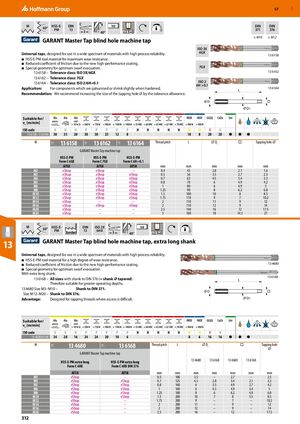

GBP 57 M C 60° HSS-E- DIN h9 DIN DIN PM 13 371 376 3 40° ≤2.5×D ≤ M10 ≥ M12 GARANT Master Tap blind hole machine tap ISO 3X Universal taps, designed for use in a wide spectrum of materials with high process reliability. 6GX ​ 13 6158 ■ HSS-E-PM tool material for maximum wear resistance. ■ Reduced coefficient of friction due to the new high-performance coating. ■ Special geometry for optimum swarf evacuation. 7GX 13 6158 – Tolerance class: ISO 3X/6GX ​ 13 6162 13 6162 – Tolerance class: 7GX 13 6164 – Tolerance class: ISO 2/6H+0.1 ISO 2 6H +0.1 Application: For components which are galvanised or shrink slightly when hardened. ​ L 13 6164 Recommendation: We recommend increasing the size of the tapping hole ⌀ by the tolerance allowance. ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 13 6158–​13 6164 30 35 20 30 30 25 12 8 10 8 20 20 ● ● ● M 13 6158 13 6162 13 6164 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 11I 11I 11I GARANT Master Tap machine tap HSS-E-PM HSS-E-PM HSS-E-PM Form C 6GX Form C 7GX Form C 6H+0.1 AlTiX AlTiX AlTiX mm mm mm mm mm M2 eShop eShop – 0.4 45 2.8 2.1 1.6 M3 eShop eShop eShop 0.5 56 3.5 2.7 2.5 M4 eShop eShop eShop 0.7 63 4.5 3.4 3.3 M5 eShop eShop eShop 0.8 70 6 4.9 4.2 M6 eShop eShop eShop 1 80 6 4.9 5 M8 eShop eShop eShop 1.25 90 8 6.2 6.8 M10 eShop eShop eShop 1.5 100 10 8 8.5 M12 eShop eShop eShop 1.75 110 9 7 10.2 M14 eShop – – 2 110 11 9 12 M16 eShop eShop eShop 2 110 12 9 14 M20 eShop – – 2.5 140 16 12 17.5 M24 eShop – – 3 160 18 14.5 21 M C 60° HSS-E- DIN ISO 2X h9 PM Standard 13 6HX 3 40° ≤2.5×D GARANT Master Tap blind hole machine tap, extra long shank 13 Universal taps, designed for use in a wide spectrum of materials with high process reliability. ■ HSS-E-PM tool material for a high degree of wear resistance. ■ Reduced coefficient of friction due to the new high-performance coating. ​ 13 4680 ■ Special geometry for optimum swarf evacuation. With extra long shank. ​ 13 6168 13 6168 – All sizes with shank to DIN 376 (= shank ⌀ tapered). L Therefore suitable for greater operating depths. 13 4680 Size M3–M10 – Shank to DIN 371. ØD Size M12–M20 – Shank to DIN 376. Advantage: Designed for tapping threads where access is difficult. Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 13 4680/​6168 24 28 16 24 24 20 10 6 8 6 16 16 ● ● ● M 13 4680 13 6168 Thread pitch L ⌀ Ds □ Tapping hole 11I 11I ⌀ GARANT Master Tap machine tap ​ 13 4680 13 6168 13 4680 13 6168 ​ HSS-E-PM extra long HSS-E-PM extra long Form C 6HX Form C 6HX DIN 376 AlTiX AlTiX mm mm mm mm mm mm mm M3 eShop – 0.5 100 3.5 – 2.7 – 2.5 M4 eShop eShop 0.7 125 4.5 2.8 3.4 2.1 3.3 M5 eShop eShop 0.8 160 6 3.5 4.9 2.7 4.2 M6 eShop eShop 1 160 6 4.5 4.9 3.4 5 M8 eShop eShop 1.25 180 8 6 6.2 4.9 6.8 M10 eShop eShop 1.5 200 10 7 8 5.5 8.5 M12 eShop – 1.75 200 9 – 7 – 10.2 M14 eShop – 2 200 11 – 9 – 12 M16 eShop – 2 200 12 – 9 – 14 M20 eShop – 2.5 200 16 – 12 – 17.5 312
