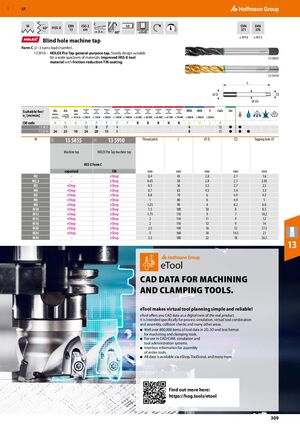

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 309

GBP 57 M C 60° HSS-E DIN ISO 2 h9 DIN DIN 13 6H 371 376 3 40° ≤3×D ≤ M10 ≥ M12 Blind hole machine tap Form C (2−3 turns lead chamfer). 13 5910 – HOLEX Pro Tap general-purpose tap. Sturdy design suitable for a wide spectrum of materials. Improved HSS-E tool ​ 13 5855 material with friction-reduction TiN coating. ​ 13 5910 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 5855 11 12 8 7 4 4 12 ● ● 13 5910 24 25 10 24 20 15 8 8 15 ● ● ● M 13 5855 13 5910 Thread pitch L ⌀ Ds □ Tapping hole ⌀ 12H 12I Machine tap HOLEX Pro Tap machine tap HSS-E Form C vaporised TiN mm mm mm mm mm M2 – eShop 0.4 45 2.8 2.1 1.6 M2,5 – eShop 0.45 50 2.8 2.1 2.05 M3 eShop eShop 0.5 56 3.5 2.7 2.5 M4 eShop eShop 0.7 63 4.5 3.4 3.3 M5 eShop eShop 0.8 70 6 4.9 4.2 M6 eShop eShop 1 80 6 4.9 5 M8 eShop eShop 1.25 90 8 6.2 6.8 M10 eShop eShop 1.5 100 10 8 8.5 M12 eShop eShop 1.75 110 9 7 10.2 M14 eShop eShop 2 110 11 9 12 M16 eShop eShop 2 110 12 9 14 M20 eShop eShop 2.5 140 16 12 17.5 M24 eShop eShop 3 160 18 14.5 21 M30 – eShop 3.5 180 22 18 26.5 13 eTool CAD DATA FOR MACHINING AND CLAMPING TOOLS. eTool makes virtual tool planning simple and reliable! eTool offers you CAD data as a digital twin of the real product. It is intended specifically for process simulation, virtual tool combination and assembly, collision checks and many other areas. ■ Well over 800,000 items of tool data in 2D, 3D and text format for machining and clamping tools. ■ For use in CAD/CAM, simulation and tool administration systems. ■ Interface information for assembly of entire tools. ■ All data is available via eShop, ToolScout, and many more Find out more here: https://hog.tools/etool 309
