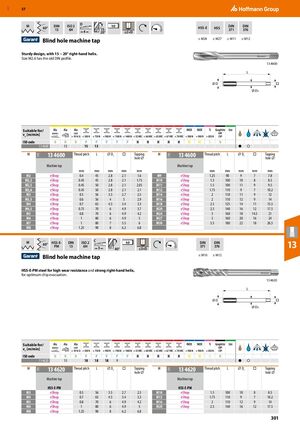

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 301

GBP 57 M D 60° DIN ISO 2 h9 HSS-E HSS DIN DIN 13 6H 15- 371 376 4 20° ≤2×D ≤ M24 ≥ M27 ≤ M11 ≥ M12 Blind hole machine tap Sturdy design, with 15 − 20° right-hand helix. Size M2.6 has the old DIN profile. 13 4600 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 4600 13 15 15 ● ○ M 13 4600 Thread pitch L ⌀ Ds □ Tapping M 13 4600 Thread pitch L ⌀ Ds □ Tapping 11H 11H hole ⌀ hole ⌀ Machine tap Machine tap mm mm mm mm mm mm mm mm mm mm M2 eShop 0.4 45 2.8 2.1 1.6 M9 eShop 1.25 90 9 7 7.8 M2,2 eShop 0.45 45 2.8 2.1 1.75 M10 eShop 1.5 100 10 8 8.5 M2,5 eShop 0.45 50 2.8 2.1 2.05 M11 eShop 1.5 100 11 9 9.5 M2,6 eShop 0.45 50 2.8 2.1 2.1 M12 eShop 1.75 110 9 7 10.2 M3 eShop 0.5 56 3.5 2.7 2.5 M14 eShop 2 110 11 9 12 M3,5 eShop 0.6 56 4 3 2.9 M16 eShop 2 110 12 9 14 M4 eShop 0.7 63 4.5 3.4 3.3 M18 eShop 2.5 125 14 11 15.5 M4,5 eShop 0.75 70 6 4.9 3.7 M20 eShop 2.5 140 16 12 17.5 M5 eShop 0.8 70 6 4.9 4.2 M24 eShop 3 160 18 14.5 21 M6 eShop 1 80 6 4.9 5 M27 eShop 3 160 20 16 24 M7 eShop 1 80 7 5.5 6 M30 eShop 3.5 180 22 18 26.5 M8 eShop 1.25 90 8 6.2 6.8 ​ ​ ​ ​ ​ ​ ​ C M 60° HSS-E- PM DIN 13 ISO 2 6H 3 40° h9 ≤3×D DIN 371 DIN 376 13 ≤ M10 ≥ M12 Blind hole machine tap HSS-E-PM steel for high wear resistance and strong right-hand helix, for optimum chip evacuation. 13 4620 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 4620 15 18 18 18 9 ● ○ M 13 4620 Thread pitch L ⌀ Ds □ Tapping M 13 4620 Thread pitch L ⌀ Ds □ Tapping 11H 11H hole ⌀ hole ⌀ Machine tap Machine tap HSS-E-PM HSS-E-PM M3 eShop 0.5 56 3.5 2.7 2.5 M10 eShop 1.5 100 10 8 8.5 M4 eShop 0.7 63 4.5 3.4 3.3 M12 eShop 1.75 110 9 7 10.2 M5 eShop 0.8 70 6 4.9 4.2 M16 eShop 2 110 12 9 14 M6 eShop 1 80 6 4.9 5 M20 eShop 2.5 140 16 12 17.5 M8 eShop 1.25 90 8 6.2 6.8 ​ ​ ​ ​ ​ ​ ​ 301
