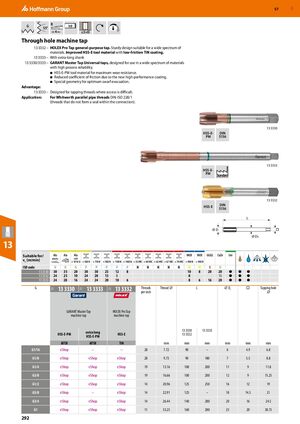

GBP 57 G B 55° h9 4 ≤3×D ​Through hole machine tap 13 3332 – HOLEX Pro Tap general-purpose tap. Sturdy design suitable for a wide spectrum of materials. Improved HSS-E tool material with low-friction TiN coating. 13 3333 – With extra-long shank 13 3330/3333 – GARANT Master Tap Universal taps, designed for use in a wide spectrum of materials with high process reliability. ■ HSS-E-PM tool material for maximum wear resistance. ■ Reduced coefficient of friction due to the new high-performance coating. ■ Special geometry for optimum swarf evacuation. Advantage: 13 3333 – Designed for tapping threads where access is difficult. Application: For Whitworth parallel pipe threads DIN-ISO 228/1 (threads that do not form a seal within the connection). 13 3330 HSS-E- DIN PM 5156 13 3333 HSS-E- PM Standard 13 3332 HSS-E DIN 5156 L ØD Ø DS 13 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 13 3330 30 35 20 30 30 25 12 8 10 8 20 20 ● ● ● 13 3332 24 25 10 24 20 15 8 8 15 ● ● ● 13 3333 24 28 16 24 24 20 10 6 8 6 16 20 ● ● ● G 13 3330 13 3333 13 3332 Threads Thread ⌀ L ⌀ Ds □ Tapping hole 12I 11I 11I per inch ⌀ GARANT Master Tap HOLEX Pro Tap machine tap machine tap ​ ​ 13 3330 13 3333 ​ ​ ​ extra long HSS-E-PM HSS-E 13 3332 HSS-E-PM AlTiX AlTiX TiN ​ mm mm mm mm mm mm G1/16 eShop – – 28 7.72 90 – 6 4.9 6.8 G1/8 eShop eShop eShop 28 9.73 90 180 7 5.5 8.8 G1/4 eShop eShop eShop 19 13.16 100 200 11 9 11.8 G3/8 eShop eShop eShop 19 16.66 100 200 12 9 15.25 G1/2 eShop eShop eShop 14 20.96 125 250 16 12 19 G5/8 eShop – eShop 14 22.91 125 – 18 14.5 21 G3/4 eShop eShop eShop 14 26.44 140 280 20 16 24.5 G1 eShop eShop eShop 11 33.25 160 280 25 20 30.75 292
