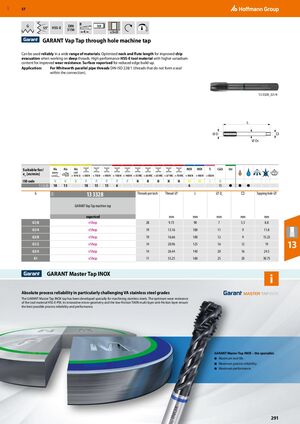

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 291

GBP 57 G B 55° HSS-E DIN h9 5156 4 ≤3×D GARANT Vap Tap through hole machine tap Can be used reliably in a wide range of materials. Optimised neck and flute length for improved chip evacuation when working on deep threads. High-performance HSS-E tool material with higher vanadium content for improved wear resistance. Surface vaporised for reduced edge build-up. Application: For Whitworth parallel pipe threads DIN-ISO 228/1 (threads that do not form a seal within the connection). 13 3328_G1/4 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 3328 18 13 18 15 15 6 6 15 ● ● ● G 13 3328 Threads per inch Thread ⌀ L ⌀ Ds □ Tapping hole ⌀ 13V GARANT Vap Tap machine tap vaporised ​ mm mm mm mm mm G1/8 eShop 28 9.73 90 7 5.5 8.8 G1/4 eShop 19 13.16 100 11 9 11.8 G3/8 eShop 19 16.66 100 12 9 15.25 G1/2 G3/4 eShop eShop 14 14 20.96 26.44 125 140 16 20 12 16 19 24.5 13 G1 eShop 11 33.25 160 25 20 30.75 GARANT Master Tap INOX Absolute process reliability in particularly challenging VA stainless steel grades The GARANT Master Tap INOX tap has been developed specially for machining stainless steels. The optimum wear resistance of the tool material HSS-E-PM, its innovative micro-geometry and the low-friction TiAlN multi-layer anti-friction layer ensure the best possible process reliability and performance. GARANT Master Tap INOX – the specialist. ■ Maximum tool life. ■ Maximum process reliability. ■ Maximum performance. 291
