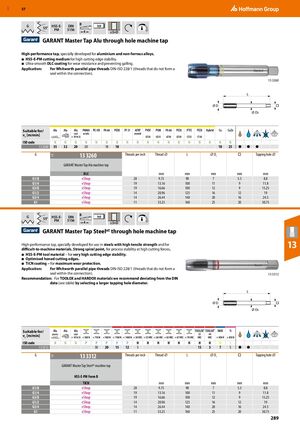

GBP 57 G B 55° HSS-E- DIN h9 PM 5156 4 ≤3×D GARANT Master Tap Alu through hole machine tap High-performance tap, specially developed for aluminium and non-ferrous alloys. ■ HSS-E-PM cutting medium for high cutting edge stability. ■ Ultra-smooth DLC coating for wear resistance and preventing galling. Application: For Whitworth parallel pipe threads DIN-ISO 228/1 (threads that do not form a seal within the connection). 13 3260 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N N N N N N N N N N N N N N N N ​ ​ ​ ​ ​ 13 3260 35 32 20 20 18 18 18 25 ● ● ● G 13 3260 Threads per inch Thread ⌀ L ⌀ Ds □ Tapping hole ⌀ 11I GARANT Master Tap Alu machine tap DLC ​ mm mm mm mm mm G1/8 eShop 28 9.73 90 7 5.5 8.8 G1/4 eShop 19 13.16 100 11 9 11.8 G3/8 eShop 19 16.66 100 12 9 15.25 G1/2 eShop 14 20.96 125 16 12 19 G3/4 eShop 14 26.44 140 20 16 24.5 G1 eShop 11 33.25 160 25 20 30.75 G B 55° HSS-E- DIN h9 PM 5156 4 ≤3×D GARANT Master Tap SteelHT through hole machine tap High-performance tap, specially developed for use in steels with high tensile strength and for difficult-to-machine materials. Strong spiral point, for process stability at high cutting forces. 13 ■ HSS-E-PM tool material – for very high cutting edge stability. ■ Optimised honed cutting edges. ■ TiCN coating – for maximum wear protection. Application: For Whitworth parallel pipe threads DIN-ISO 228/1 (threads that do not form a seal within the connection). ​ 13 3312 Recommendation: For TOOLOX and HARDOX materials we recommend deviating from the DIN data (see table) by selecting a larger tapping hole diameter. L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H H H H M S ​ ​ ​ ​ ​ 13 3312 30 20 15 12 5 15 5 7 5 ● ● G 13 3312 Threads per inch Thread ⌀ L ⌀ Ds □ Tapping hole ⌀ 11I GARANT Master Tap SteelHT machine tap HSS-E-PM Form B TiCN ​ mm mm mm mm mm G1/8 eShop 28 9.73 90 7 5.5 8.8 G1/4 eShop 19 13.16 100 11 9 11.8 G3/8 eShop 19 16.66 100 12 9 15.25 G1/2 eShop 14 20.96 125 16 12 19 G3/4 eShop 14 26.44 140 20 16 24.5 G1 eShop 11 33.25 160 25 20 30.75 289
