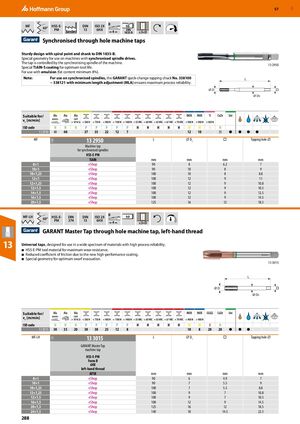

GBP 57 MF B 60° HSS-E- PM DIN 13 ISO 2X 6HX h6 DIN Standard 4 1835 B ≤3×D Synchronised through hole machine taps Sturdy design with spiral point and shank to DIN 1835-B. Special geometry for use on machines with synchronised spindle drives. The tap is controlled by the synchronising spindle of the machine. 13 2950 Special TiAlN-S coating for optimum tool life. For use with emulsion (fat content minimum 8%). Note: For use on synchronised spindles, the GARANT quick-change tapping chuck No. 338100 L − 338121 with minimum length adjustment (MLA) ensures maximum process reliability. ⌀D □ ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 2950 40 40 37 35 22 12 7 12 10 35 ● ● ● ● MF 13 2950 L ⌀ Ds □ Tapping hole ⌀ 11H Machine tap for synchronised spindles HSS-E-PM TiAlN mm mm mm mm 8×1 eShop 90 8 6.2 7 10×1 eShop 90 10 8 9 10×1,25 eShop 100 10 8 8.8 12×1 eShop 100 12 9 11 12×1,25 eShop 100 12 9 10.8 12×1,5 eShop 100 12 9 10.5 14×1,5 eShop 100 12 9 12.5 16×1,5 eShop 100 12 9 14.5 20×1,5 eShop 125 16 12 18.5 MF-LH B 60° HSS-E- DIN DIN ISO 2X h9 PM 374 13 6HX 4 ≤3×D GARANT Master Tap through hole machine tap, left-hand thread 13 Universal taps, designed for use in a wide spectrum of materials with high process reliability. ■ HSS-E-PM tool material for maximum wear resistance. ■ Reduced coefficient of friction due to the new high-performance coating. ■ Special geometry for optimum swarf evacuation. 13 3015 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K N ​ ​ ​ ​ ​ ​ 13 3015 30 35 20 30 30 25 12 8 10 8 20 20 ● ● ● MF-LH 13 3015 L ⌀ Ds □ Tapping hole ⌀ 11I GARANT Master Tap machine tap HSS-E-PM Form B 6HX left-hand thread AlTiX mm mm mm mm 8×1 eShop 90 6 4.9 7 10×1 eShop 90 7 5.5 9 10×1,25 eShop 100 7 5.5 8.8 12×1,25 eShop 100 9 7 10.8 12×1,5 eShop 100 9 7 10.5 16×1,5 eShop 100 12 9 14.5 20×1,5 eShop 125 16 12 18.5 24×1,5 eShop 140 18 14.5 22.5 288
