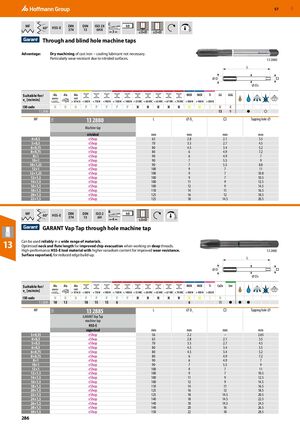

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 286

GBP 57 MF C 60° HSS-E DIN DIN ISO 2X h9 374 13 6HX 3 ≤3×D ≤3×D Through and blind hole machine taps Advantage: Dry machining of cast iron − cooling lubricant not necessary. Particularly wear-resistant due to nitrided surfaces. 13 2880 L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S K K ​ ​ ​ ​ ​ 13 2880 13 9 ● ○ MF 13 2880 L ⌀ Ds □ Tapping hole ⌀ 11H Machine tap nitrided mm mm mm mm 4×0,5 eShop 63 2.8 2.1 3.5 5×0,5 eShop 70 3.5 2.7 4.5 6×0,75 eShop 80 4.5 3.4 5.2 8×0,75 eShop 80 6 4.9 7.2 8×1 eShop 90 6 4.9 7 10×1 eShop 90 7 5.5 9 10×1,25 eShop 90 7 5.5 8.8 12×1 eShop 100 9 7 11 12×1,25 eShop 100 9 7 10.8 12×1,5 eShop 100 9 7 10.5 14×1,5 eShop 100 11 9 12.5 16×1,5 eShop 100 12 9 14.5 18×1,5 eShop 110 14 11 16.5 20×1,5 eShop 125 16 12 18.5 22×1,5 eShop 125 18 14.5 20.5 MF B 60° HSS-E DIN DIN ISO 2 h9 374 13 6H 4 ≤3×D GARANT Vap Tap through hole machine tap Can be used reliably in a wide range of materials. 13 Optimised neck and flute length for improved chip evacuation when working on deep threads. High-performance HSS-E tool material with higher vanadium content for improved wear resistance. 13 2885 Surface vaporised, for reduced edge build-up. L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 13 2885 18 13 18 15 15 6 6 15 ● ● ● MF 13 2885 L ⌀ Ds □ Tapping hole ⌀ 13V GARANT Vap Tap machine tap HSS-E vaporised mm mm mm mm 3×0,35 eShop 56 2.2 – 2.65 4×0,5 eShop 63 2.8 2.1 3.5 5×0,5 eShop 70 3.5 2.7 4.5 6×0,5 eShop 80 4.5 3.4 5.5 6×0,75 eShop 80 4.5 3.4 5.2 8×0,75 eShop 80 6 4.9 7.2 8×1 eShop 90 6 4.9 7 10×1 eShop 90 7 5.5 9 12×1 eShop 100 9 7 11 12×1,5 eShop 100 9 7 10.5 14×1,5 eShop 100 11 9 12.5 16×1,5 eShop 100 12 9 14.5 18×1,5 eShop 110 14 11 16.5 20×1,5 eShop 125 16 12 18.5 22×1,5 eShop 125 18 14.5 20.5 24×1,5 eShop 140 18 14.5 22.5 26×1,5 eShop 140 18 14.5 24.5 28×1,5 eShop 140 20 16 26.5 30×1,5 eShop 150 22 18 28.5 286
