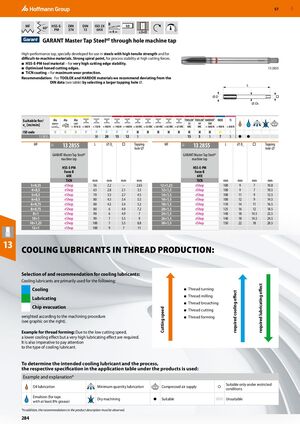

GBP 57 MF B 60° HSS-E- DIN DIN ISO 2X h9 PM 374 13 6HX 4 ≤3×D GARANT Master Tap SteelHT through hole machine tap High-performance tap, specially developed for use in steels with high tensile strength and for difficult-to-machine materials. Strong spiral point, for process stability at high cutting forces. ■ HSS-E-PM tool material – for very high cutting edge stability. ■ Optimised honed cutting edges. 13 2855 ■ TiCN coating – for maximum wear protection. Recommendation: For TOOLOX and HARDOX materials we recommend deviating from the DIN data (see table) by selecting a larger tapping hole ⌀. L ØD Ø DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H H H H M S ​ ​ ​ ​ ​ 13 2855 30 20 15 12 5 15 5 3 7 5 ● ● MF 13 2855 L ⌀ Ds □ Tapping MF 13 2855 L ⌀ Ds □ Tapping 11I 11I hole ⌀ hole ⌀ GARANT Master Tap SteelHT GARANT Master Tap SteelHT machine tap machine tap HSS-E-PM HSS-E-PM Form B Form B 6HX 6HX TiCN mm mm mm mm TiCN mm mm mm mm 3×0,35 eShop 56 2.2 – 2.65 12×1,25 eShop 100 9 7 10.8 4×0,5 eShop 63 2.8 2.1 3.5 12×1,5 eShop 100 9 7 10.5 5×0,5 eShop 70 3.5 2.7 4.5 14×1,5 eShop 100 11 9 12.5 6×0,5 eShop 80 4.5 3.4 5.5 16×1,5 eShop 100 12 9 14.5 6×0,75 eShop 80 4.5 3.4 5.2 18×1,5 eShop 110 14 11 16.5 8×0,75 eShop 80 6 4.9 7.2 20×1,5 eShop 125 16 12 18.5 8×1 eShop 90 6 4.9 7 24×1,5 eShop 140 18 14.5 22.5 10×1 eShop 90 7 5.5 9 26×1,5 eShop 140 18 14.5 24.5 10×1,25 eShop 100 7 5.5 8.8 30×1,5 eShop 150 22 18 28.5 12×1 eShop 100 9 7 11 ​ ​ ​ ​ ​ ​ 13 COOLING LUBRICANTS IN THREAD PRODUCTION: Selection of and recommendation for cooling lubricants: Cooling lubricants are primarily used for the following: required lubricating effect Cooling ɾ Thread turning required cooling effect ɾ Thread milling Lubricating ɾ Thread broaching Chip evacuation Cutting speed ɾ Thread cutting weighted according to the machining procedure ɾ Thread forming (see graphic on the right). Example for thread forming: Due to the low cutting speed, a lower cooling effect but a very high lubricating effect are required. It is also imperative to pay attention to the type of cooling lubricant. To determine the intended cooling lubricant and the process, the respective specification in the application table under the products is used: Example and explanation* Suitable only under restricted Oil lubrication Minimum quantity lubrication Compressed air supply ○ conditions Emulsion (for taps Dry machining ● Suitable Unsuitable with at least 8% grease) *In addition, the recommendations in the product description must be observed. 284
