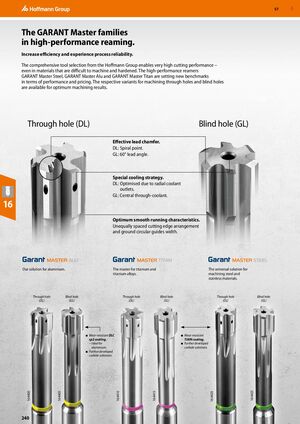

GBP 57 The GARANT Master families in high-performance reaming. Increase efficiency and experience process reliability. The comprehensive tool selection from the Hoffmann Group enables very high cutting performance – even in materials that are difficult to machine and hardened. The high-performance reamers GARANT Master Steel, GARANT Master Alu and GARANT Master Titan are setting new benchmarks in terms of performance and pricing. The respective variants for machining through holes and blind holes are available for optimum machining results. Through hole (DL) Blind hole (GL) Effective lead chamfer. DL: S piral point. GL: 6 0° lead angle. Special cooling strategy. DL: O  ptimised due to radial coolant outlets. GL: C  entral through-coolant. 16 Optimum smooth running characteristics. Unequally spaced cutting edge arrangement and ground circular guides width. Our solution for aluminium. The master for titanium and The universal solution for titanium alloys. machining steel and stainless materials. Through hole Blind hole Through hole Blind hole Through hole Blind hole (DL) (GL) (DL) (GL) (DL) (GL) ■ Wear-resistant DLC ■ Wear-resistant sp2 coating. TiAlN coating. – Ideal for ■ Further developed aluminium. carbide substrate. ■ Further developed carbide substrate. 16 4425 16 4400 16 4405 16 4410 16 4415 16 4420 240
