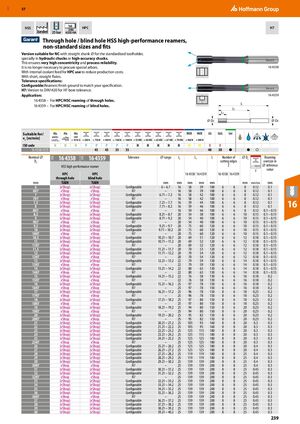

GBP 57 HSS h6 HPC H7 DIN Standard 25 bar 6535 HA Through hole / blind hole HSS high-performance reamers, non-standard sizes and fits Version suitable for NC with straight shank ⌀ for the standardised toolholder, specially in hydraulic chucks or high-accuracy chucks. This ensures very high concentricity and process reliability. It is no longer necessary to procure special arbors. ​ 16 4358 With internal coolant feed for HPC use to reduce production costs. With short, straight flutes. Tolerance specifications: Configurable:Reamers finish ground to match your specification. H7: Version to DIN1420 for H7 bore tolerance. Application: ​ 16 4359 16 4358 – For HPC/HSC reaming of through holes. L 16 4359 – For HPC/HSC reaming of blind holes. L1 Lc ⌀ DC ⌀ DS Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M K K ​ ​ ​ ​ ​ ​ 16 4358/​4359 45 45 35 35 40 30 ● ● ○ Nominal ⌀ 16 4358 16 4359 Tolerance ⌀ range Lc L1 L Number of ⌀ Ds Reaming 10N 10N DC cutting edges oversize in HSS high-performance reamer Z < 1100 N ⌀ reference f value HPC HPC ​ ​ ​ 16 4358 16 4359 ​ 16 4358 16 4359 ​ through hole blind hole mm TiAlN TiAlN ​ mm mm mm mm mm ​ ​ mm mm/rev. mm 6 (eShop) (eShop) Configurable 6 – 6.7 16 58 39 100 6 6 8 0.12 0.1 6H7 eShop eShop H7 – 16 58 39 100 6 6 8 0.12 0.1 7 (eShop) (eShop) Configurable 6.71 – 7.2 16 58 42 100 6 6 8 0.12 0.1 7H7 eShop eShop H7 – 16 58 42 100 6 6 8 0.12 0.1 7,5 8 8H7 (eShop) (eShop) eShop (eShop) (eShop) eShop Configurable Configurable H7 7.21 – 7.7 16 7.71 – 8.2 16 – 16 59 59 59 44 46 46 100 100 100 6 6 6 6 6 6 8 8 8 0.12 0.12 0.1 0.1 0.12 0.1 – 0.15 16 8,5 (eShop) (eShop) Configurable 8.21 – 8.7 20 54 38 100 6 6 10 0.15 0.1 – 0.15 9 (eShop) (eShop) Configurable 8.71 – 9.2 20 54 40 100 6 6 10 0.15 0.1 – 0.15 9H7 eShop eShop H7 – 20 54 40 100 6 6 10 0.15 0.1 – 0.15 9,5 (eShop) (eShop) Configurable 9.21 – 9.7 20 75 60 120 6 6 10 0.15 0.1 – 0.15 10 (eShop) (eShop) Configurable 9.71 – 10.2 20 75 60 120 6 6 10 0.15 0.1 – 0.15 10H7 eShop eShop H7 – 20 75 60 120 6 6 10 0.15 0.1 – 0.15 10,5 (eShop) (eShop) Configurable 10.21 – 10.7 20 69 51 120 6 6 12 0.18 0.1 – 0.15 11 (eShop) (eShop) Configurable 10.71 – 11.2 20 69 52 120 6 6 12 0.18 0.1 – 0.15 11H7 eShop eShop H7 – 20 69 52 120 6 6 12 0.18 0.1 – 0.15 11,5 (eShop) (eShop) Configurable 11.21 – 11.7 20 70 53 120 6 6 12 0.18 0.1 – 0.15 12 (eShop) (eShop) Configurable 11.71 – 12.2 20 70 54 120 6 6 12 0.18 0.1 – 0.15 12H7 eShop eShop H7 – 20 70 54 120 6 6 12 0.18 0.1 – 0.15 13 (eShop) (eShop) Configurable 12.21 – 13.2 22 79 59 130 6 6 14 0.18 0.1 – 0.15 13H7 eShop eShop H7 – 22 79 59 130 6 6 14 0.18 0.1 – 0.15 14 (eShop) (eShop) Configurable 13.21 – 14.2 22 80 63 130 6 6 14 0.18 0.1 – 0.15 14H7 eShop eShop H7 – 22 80 63 130 6 6 14 0.18 0.1 – 0.15 15 (eShop) (eShop) Configurable 14.21 – 15.2 22 76 58 130 6 6 16 0.18 0.2 15H7 eShop eShop H7 – 22 76 58 130 6 6 16 0.18 0.2 16 (eShop) (eShop) Configurable 15.21 – 16.2 25 97 78 150 6 6 16 0.18 0.2 16H7 eShop eShop H7 – 25 97 78 150 6 6 16 0.18 0.2 17 (eShop) (eShop) Configurable 16.21 – 17.2 25 96 78 150 8 6 18 0.23 0.2 17H7 eShop eShop H7 – 25 96 78 150 8 6 18 0.23 0.2 18 (eShop) (eShop) Configurable 17.21 – 18.2 25 97 80 150 8 6 18 0.23 0.2 18H7 eShop eShop H7 – 25 97 80 150 8 6 18 0.23 0.2 19 (eShop) (eShop) Configurable 18.21 – 19.2 25 94 80 150 8 6 20 0.23 0.2 19H7 eShop eShop H7 – 25 94 80 150 8 6 20 0.23 0.2 20 (eShop) (eShop) Configurable 19.21 – 20.2 25 95 82 150 8 6 20 0.23 0.2 20H7 eShop eShop H7 – 25 95 82 150 8 6 20 0.23 0.2 21 (eShop) (eShop) Configurable 20.21 – 21.2 25 105 93 160 8 8 20 0.3 0.3 22 (eShop) (eShop) Configurable 21.21 – 22.2 25 105 95 160 8 8 20 0.3 0.3 23 (eShop) (eShop) Configurable 22.21 – 23.2 25 125 115 180 8 8 20 0.3 0.3 24 (eShop) (eShop) Configurable 23.21 – 24.2 25 125 115 180 8 8 20 0.3 0.3 25 (eShop) (eShop) Configurable 24.21 – 25.2 25 125 125 180 8 8 20 0.3 0.3 25H7 eShop eShop H7 – 25 125 125 180 8 8 20 0.3 0.3 26 (eShop) (eShop) Configurable 25.21 – 26.2 25 125 125 180 8 8 20 0.4 0.3 27 (eShop) (eShop) Configurable 26.21 – 27.2 25 125 125 180 8 8 20 0.4 0.3 28 (eShop) (eShop) Configurable 27.21 – 28.2 25 119 119 180 8 8 25 0.4 0.3 29 (eShop) (eShop) Configurable 28.21 – 29.2 25 119 119 180 8 8 25 0.4 0.3 30 (eShop) (eShop) Configurable 29.21 – 30.2 25 139 139 200 8 8 25 0.4 0.3 30H7 eShop eShop H7 – 25 139 139 200 8 8 25 0.4 0.3 31 (eShop) (eShop) Configurable 30.21 – 31.2 25 139 139 200 8 8 25 0.45 0.3 32 (eShop) (eShop) Configurable 31.21 – 32.2 25 139 139 200 8 8 25 0.45 0.3 32H7 eShop eShop H7 – 25 139 139 200 8 8 25 0.45 0.3 33 (eShop) (eShop) Configurable 32.21 – 33.2 25 139 139 200 8 8 25 0.45 0.3 34 (eShop) (eShop) Configurable 33.21 – 34.2 25 139 139 200 8 8 25 0.45 0.3 35 (eShop) (eShop) Configurable 34.21 – 35.2 25 139 139 200 8 8 25 0.45 0.3 36 (eShop) (eShop) Configurable 35.21 – 36.2 25 139 139 200 8 8 25 0.45 0.3 36H7 eShop eShop H7 – 25 139 139 200 8 8 25 0.45 0.3 37 (eShop) (eShop) Configurable 36.21 – 37.2 25 139 139 200 8 8 25 0.45 0.3 38 (eShop) (eShop) Configurable 37.21 – 38.2 25 139 139 200 8 8 25 0.45 0.3 39 (eShop) (eShop) Configurable 38.21 – 39.2 25 139 139 200 8 8 25 0.45 0.3 40 (eShop) (eShop) Configurable 39.21 – 40.2 25 139 139 200 8 8 25 0.45 0.3 239
