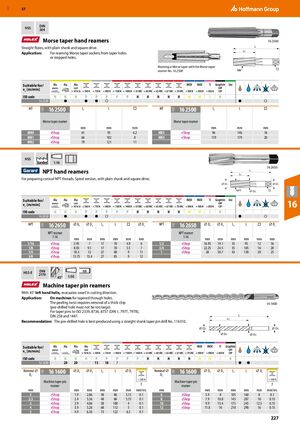

GBP 57 HSS DIN 204 Morse taper hand reamers 16 2500 Straight flutes, with plain shank and square drive. L LC Application: For reaming Morse taper sockets from taper holes or stepped holes. Reaming a Morse taper with the Morse taper MK □ reamer No. 16 2500 Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 16 2500 ● ● ● ○ ● ○ MT 16 2500 Lc L □ MT 16 2500 Lc L □ 12O 12O Morse taper reamer Morse taper reamer mm mm mm mm mm mm MK0 eShop 61 93 6.2 MK3 eShop 96 146 16 MK1 eShop 66 102 8 MK4 eShop 119 179 20 MK2 eShop 79 121 11 ​ ​ ​ ​ ​ HSS Standard 1:16 16 2650 NPT hand reamers LC L For preparing conical NPT threads. Spiral version, with plain shank and square drive. ⌀ D3 ⌀ DS NPT ⌀ D2 □ Suitable for/ vc [m/min] 16 ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 16 2650 ● ● ● ○ ● ○ NPT 16 2650 ⌀ D3 ⌀ D2 Lc L □ ⌀ Ds NPT 16 2650 ⌀ D3 ⌀ D2 Lc L □ ⌀ Ds 11O 11O NPT reamer NPT reamer 1:16 1:16 mm mm mm mm mm mm mm mm mm mm mm mm 1/16 eShop 5.95 7 17 70 4.9 6 1/2 eShop 16.95 19.1 35 95 12 16 1/8 eShop 8.05 9.1 17 70 5.5 7 3/4 eShop 22.25 24.5 35 105 16 20 1/4 eShop 10.3 12 27 80 9 11 1 eShop 28 30.7 43 130 20 25 3/8 eShop 13.75 15.4 27 85 9 12 ​ ​ ​ ​ ​ ​ ​ ​ HSS-E DIN h9 2179 45° 1:50 Machine taper pin reamers With 45° left hand helix, evacuates swarf in cutting direction. Application: On machines for tapered through holes. The peeling twist requires removal of a thick chip 16 1600 (pre-drilled hole must not be too large). For taper pins to ISO 2339, 8736, 8737 (DIN 1, 7977, 7978), DIN 258 and 1447. L LC Recommendation: The pre-drilled hole is best produced using a straight shank taper pin drill No. 116310. ⌀ D3 ⌀ DS ⌀ DC ⌀ D2 Suitable for/ vc [m/min] ISO code N N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ 16 1600 20 20 15 10 7 ● ● Nominal ⌀ 16 1600 ⌀ D3 ⌀ D2 Lc L ⌀ Ds Nominal ⌀ 16 1600 ⌀ D3 ⌀ D2 Lc L ⌀ Ds 12O 12O DC DC < 500 N < 500 N Machine taper pin Machine taper pin reamer f reamer f mm mm mm mm mm mm mm/rev. mm mm mm mm mm mm mm/rev. 2 eShop 1.9 2.86 48 86 3.15 0.1 6 eShop 5.9 8 105 160 8 0.1 2,5 eShop 2.4 3.36 48 86 3.15 0.1 8 eShop 7.9 10.8 145 207 10 0.13 3 eShop 2.9 4.06 58 100 4 0.1 10 eShop 9.9 13.4 175 245 12.5 0.15 4 eShop 3.9 5.26 68 112 5 0.1 12 eShop 11.8 16 210 290 16 0.15 5 eShop 4.9 6.36 73 122 6.3 0.1 ​ ​ ​ ​ ​ ​ ​ ​ 227
