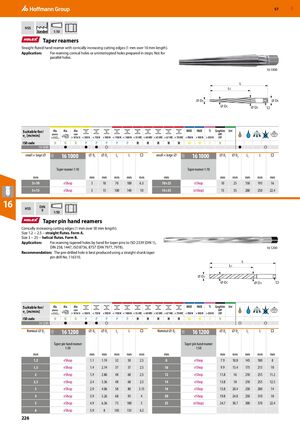

GBP 57 HSS Standard 1:10 Taper reamers Straight fluted hand reamer with conically increasing cutting edges (1 mm over 10 mm length). Application: For reaming conical holes or uninterrupted holes prepared in steps. Not for parallel holes. 16 1000 L LC ⌀ D3 ⌀ DS ⌀ DC ⌀ D2 □ Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 16 1000 ● ● ● ○ ● ○ small × large ⌀ 16 1000 ⌀ D3 ⌀ D2 Lc L □ small × large ⌀ 16 1000 ⌀ D3 ⌀ D2 Lc L □ 12O 12O Taper reamer 1:10 Taper reamer 1:10 mm mm mm mm mm mm mm mm mm mm mm mm 3×10 eShop 3 10 70 100 6.3 10×25 eShop 10 25 150 195 16 5×15 eShop 5 15 100 140 10 15×35 (eShop) 15 35 200 250 22.4 16 HSS DIN 9 1:50 Taper pin hand reamers Conically increasing cutting edges (1 mm over 50 mm length). Size 1.2 − 2.5 − straight flutes. Form A. Size 3 − 25 − helical flutes. Form B. Application: For reaming tapered holes by hand for taper pins to ISO 2339 (DIN 1), DIN 258, 1447, ISO 8736, 8737 (DIN 7977, 7978). ​ 16 1200 Recommendation: The pre-drilled hole is best produced using a straight shank taper pin drill No. 116310. L LC ⌀ D3 ⌀ DC ⌀ D2 □ Suitable for/ vc [m/min] ISO code N N N P P P P P H H H H H M M S N ​ ​ ​ ​ ​ ​ 16 1200 ● ● ● ○ ○ ○ Nominal ⌀ DC 16 1200 ⌀ D3 ⌀ D2 Lc L □ Nominal ⌀ DC 16 1200 ⌀ D3 ⌀ D2 Lc L □ 12O 12O Taper pin hand reamer Taper pin hand reamer 1:50 1:50 mm mm mm mm mm mm mm mm mm mm mm mm 1,2 eShop 1.1 1.74 32 50 2.5 8 eShop 7.9 10.8 145 180 8 1,5 eShop 1.4 2.14 37 57 2.5 10 eShop 9.9 13.4 175 215 10 2 eShop 1.9 2.86 48 68 2.5 12 eShop 11.8 16 210 255 11.2 2,5 eShop 2.4 3.36 48 68 2.5 14 eShop 13.8 18 210 255 12.5 3 eShop 2.9 4.06 58 80 3.15 16 eShop 15.8 20.4 230 280 14 4 eShop 3.9 5.26 68 93 4 20 eShop 19.8 24.8 250 310 18 5 eShop 4.9 6.36 73 100 5 25 (eShop) 24.7 30.7 300 370 22.4 6 eShop 5.9 8 105 135 6.3 ​ ​ ​ ​ ​ ​ ​ 226
