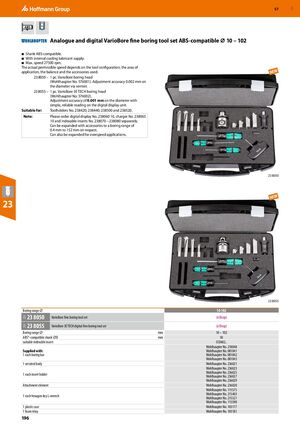

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 196

GBP 57 ABS Analogue and digital VarioBore fine boring tool set ABS-compatible ⌀ 10 – 102 ■ Shank ABS-compatible. ■ With internal cooling lubricant supply. ■ Max. speed 27500 rpm. The actual permissible speed depends on the tool configuration, the area of application, the balance and the accessories used. NEW 23 8050 – 1 pc. VarioBore boring head (Wohlhaupter No. 576001). Adjustment accuracy 0.002 mm on the diameter via vernier. 23 8055 – 1 pc. VarioBore 3E TECH boring head (Wohlhaupter No. 576002). Adjustment accuracy of 0.001 mm on the diameter with simple, reliable reading on the digital display unit. Suitable for: Toolholders No. 238420; 238440; 238500 and 238520. Note: Please order digital display No. 238060 10, charger No. 238065 10 and indexable inserts No. 238070 −238080 separately. Can be expanded with accessories to a boring range of 0.4 mm to 152 mm on request. Can also be expanded for overspeed applications. ​ 23 8050 NEW 23 ​ 23 8055 Boring range ⌀ 10-102 23 8050 VarioBore fine boring tool set (eShop) 23Y 23 8055 VarioBore 3E TECH digital fine boring tool set (eShop) 23Y Boring range ⌀ mm 10 – 102 ABS®-compatible shank ⌀D mm 50 suitable indexable insert CC0602.. Wohlhaupter No. 218048 Supplied with: Wohlhaupter No. 081041 1 each boring bar Wohlhaupter No. 081042 Wohlhaupter No. 081043 1 serrated body Wohlhaupter No. 236021 Wohlhaupter No. 236023 Wohlhaupter No. 236025 1 each insert holder Wohlhaupter No. 236027 Wohlhaupter No. 236029 Attachment element Wohlhaupter No. 236020 Wohlhaupter No. 115575 Wohlhaupter No. 215403 1 each hexagon key L-wrench Wohlhaupter No. 215521 Wohlhaupter No. 115590 1 plastic case Wohlhaupter No. 103177 1 foam inlay Wohlhaupter No. 103181 196
