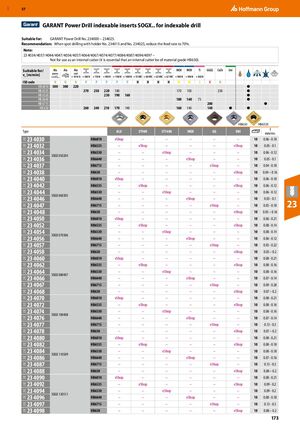

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 173
Навигация
Каталог Hoffmann Group ручной и измерительный инструмент
Каталог Hoffmann Group режущий и вспомогательный инструмент
Производственная мебель и системы хранения Hoffmann Group 2026
Каталог Hoffmann Group токарный инструмент
Каталог Hoffmann Group запасные части, оснастка и СИЗ
Режущие пластины SOGX для сменной фрезы GARANT Power Drill
Подходит для: сменная фреза GARANT Power Drill № 234000–234025.
Рекомендация: при центровании с держателем № 234015 и № 234025 снижайте подачу на 70%.
Примечание
Модели 23 4034/4037/4044/4047/4054/4057/4064/4067/4074/4077/4084/4087/4094/4097 – не предназначены для использования в качестве внутреннего режущего инструмента (для внутреннего режущего инструмента необходимо использовать материал класса HB630).
| Тип | Код ISO режущей пластины | HB6810 vc [м/мин] | HB6535 vc [м/мин] | HB6530 vc [м/мин] | HB6640 vc [м/мин] | HB6715 vc [м/мин] | HB630 vc [м/мин] | ALU | ST900 | ST1400 | INOX | GG | UNI | f [мм/об] | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 23 4030 | SOGX 050204 | HB6810 | 500 | – | – | – | – | – | 10 | 0,06–0,18 | ||||||||
| 23 4032 | SOGX 050204 | HB6535 | – | 270 | 250 | 220 | 180 | – | – | – | – | 170 | 150 | – | 250 | – | 10 | 0,05–0,1 |
| 23 4034 | HB6530 | – | – | – | 230 | 190 | 160 | – | – | – | – | – | – | 10 | 0,06–0,12 | |||
| 23 4036 | HB6640 | – | – | – | – | – | – | 180 | 160 | 75 | – | – | 10 | 0,05–0,1 | ||||
| 23 4037 | HB6715 | – | – | – | – | – | – | – | – | – | 200 | – | – | 10 | 0,04–0,18 | |||
| 23 4038 | SOGX 050204 | HB630 | – | – | – | – | – | – | – | – | – | – | – | – | 10 | 0,04–0,16 | ||
| 23 4040 | SOGX 060305 | HB6810 | 500 | – | – | – | – | – | 10 | 0,06–0,18 | ||||||||
| 23 4042 | HB6535 | – | 270 | 250 | 220 | 180 | – | – | – | – | – | – | – | – | 10 | 0,06–0,12 | ||
| 23 4044 | HB6530 | – | – | – | 230 | 190 | 160 | – | – | – | – | – | – | 10 | 0,06–0,12 | |||
| 23 4046 | HB6640 | – | – | – | – | – | – | 180 | 160 | 75 | – | – | 10 | 0,05–0,1 | ||||
| 23 4047 | SOGX 060305 | HB6715 | – | – | – | – | – | – | – | – | – | 200 | – | – | 10 | 0,05–0,18 | ||
| 23 4048 | SOGX 060305 | HB630 | – | – | – | – | – | – | – | – | – | – | – | – | 10 | 0,05–0,16 | ||
| 23 4050 | SOGX 070306 | HB6810 | 500 | – | – | – | – | – | 10 | 0,06–0,21 | ||||||||
| 23 4052 | HB6535 | – | 270 | 250 | 220 | 180 | – | – | – | – | – | – | – | – | 10 | 0,08–0,14 | ||
| 23 4054 | HB6530 | – | – | – | 230 | 190 | 160 | – | – | – | – | – | – | 10 | 0,08–0,14 | |||
| 23 4056 | HB6640 | – | – | – | – | – | – | 180 | 160 | 75 | – | – | 10 | 0,06–0,12 | ||||
| 23 4057 | SOGX 070306 | HB6715 | – | – | – | – | – | – | – | – | – | 200 | – | – | 10 | 0,05–0,22 | ||
| 23 4058 | SOGX 070306 | HB630 | – | – | – | – | – | – | – | – | – | – | – | – | 10 | 0,05–0,2 | ||
| 23 4060 | SOGX 080407 | HB6810 | 500 | – | – | – | – | – | 10 | 0,08–0,21 | ||||||||
| 23 4062 | HB6535 | – | 270 | 250 | 220 | 180 | – | – | – | – | – | – | – | – | 10 | 0,08–0,16 | ||
| 23 4064 | HB6530 | – | – | – | 230 | 190 | 160 | – | – | – | – | – | – | 10 | 0,08–0,16 | |||
| 23 4066 | HB6640 | – | – | – | – | – | – | 180 | 160 | 75 | – | – | 10 | 0,07–0,14 | ||||
| 23 4067 | SOGX 080407 | HB6715 | – | – | – | – | – | – | – | – | – | 200 | – | – | 10 | 0,09–0,28 | ||
| 23 4068 | SOGX 080407 | HB630 | – | – | – | – | – | – | – | – | – | – | – | – | 10 | 0,07–0,2 | ||
| 23 4070 | SOGX 100408 | HB6810 | 500 | – | – | – | – | – | 10 | 0,08–0,21 | ||||||||
| 23 4072 | HB6535 | – | 270 | 250 | 220 | 180 | – | – | – | – | – | – | – | – | 10 | 0,08–0,16 | ||
| 23 4074 | HB6530 | – | – | – | 230 | 190 | 160 | – | – | – | – | – | – | 10 | 0,08–0,16 | |||
| 23 4076 | HB6640 | – | – | – | – | – | – | 180 | 160 | 75 | – | – | 10 | 0,07–0,14 | ||||
| 23 4077 | SOGX 100408 | HB6715 | – | – | – | – | – | – | – | – | – | 200 | – | – | 10 | 0,13–0,3 | ||
| 23 4078 | SOGX 100408 | HB630 | – | – | – | – | – | – | – | – | – | – | – | – | 10 | 0,07–0,2 | ||
| 23 4080 | SOGX 110509 | HB6810 | 500 | – | – | – | – | – | 10 | 0,08–0,21 | ||||||||
| 23 4082 | HB6535 | – | 270 | 250 | 220 | 180 | – | – | – | – | – | – | – | – | 10 | 0,08–0,18 | ||
| 23 4084 | HB6530 | – | – | – | 230 | 190 | 160 | – | – | – | – | – | – | 10 | 0,08–0,18 | |||
| 23 4086 | HB6640 | – | – | – | – | – | – | 180 | 160 | 75 | – | – | 10 | 0,07–0,16 | ||||
| 23 4087 | SOGX 110509 | HB6715 | – | – | – | – | – | – | – | – | – | 200 | – | – | 10 | 0,13–0,3 | ||
| 23 4088 | SOGX 110509 | HB630 | – | – | – | – | – | – | – | – | – | – | – | – | 10 | 0,08–0,2 | ||
| 23 4090 | SOGX 130511 | HB6810 | 500 | – | – | – | – | – | 10 | 0,08–0,21 | ||||||||
| 23 4092 | HB6535 | – | 270 | 250 | 220 | 180 | – | – | – | – | – | – | – | – | 10 | 0,09–0,2 | ||
| 23 4094 | HB6530 | – | – | – | 230 | 190 | 160 | – | – | – | – | – | – | 10 | 0,09–0,2 | |||
| 23 4096 | HB6640 | – | – | – | – | – | – | 180 | 160 | 75 | – | – | 10 | 0,08–0,18 | ||||
| 23 4097 | SOGX 130511 | HB6715 | – | – | – | – | – | – | – | – | – | 200 | – | – | 10 | 0,13–0,3 | ||
| 23 4098 | SOGX 130511 | HB630 | – | – | – | – | – | – | – | – | – | – | – | – | 10 | 0,08–0,2 |
