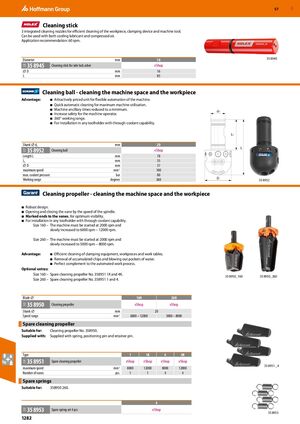

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1282

GBP 57 ​ Cleaning stick 3 integrated cleaning nozzles for efficient cleaning of the workpiece, clamping device and machine tool. Can be used with both cooling lubricant and compressed air. Application recommendation: 60 rpm. Diameter mm 16 35 8945 35 8945 Cleaning stick for side lock arbor eShop 32E ⌀ D mm 16 L mm 85 ​ Cleaning ball - cleaning the machine space and the workpiece Advantage: ■ Attractively priced unit for flexible automation of the machine. ■ Quick automatic cleaning for maximum machine utilisation. ■ Machine ancillary times reduced to a minimum. d1 ■ Increase safety for the machine operator. ■ 360° working range. ■ For installation in any toolholder with through-coolant capability. L1 Shank ⌀ d1 mm 20 L 35 8952 Cleaning ball eShop 33T Length L mm 78 L1 mm 35 ⌀ D mm 37 maximum speed min-1 100 max. coolant pressure bar 80 Working range degrees 360 D 35 8952 ​ Cleaning propeller - cleaning the machine space and the workpiece ■ Robust design. ■ Opening and closing the vane by the speed of the spindle. ■ Marked ends to the vanes, for optimum visibility. ■ For installation in any toolholder with through-coolant capability. Size 160 – The machine must be started at 2000 rpm and slowly increased to 6000 rpm – 12000 rpm. Size 260 – The machine must be started at 2000 rpm and slowly increased to 5000 rpm – 8000 rpm. Advantage: ■ Efficient cleaning of clamping equipment, workpieces and work tables. ■ Removal of accumulated chips and blowing out pockets of water. ■ Perfect complement to the automated work process. Optional extras: Size 160 – Spare cleaning propeller No. 358951 1K and 4K. 35 8950_160 35 8950_260 Size 260 – Spare cleaning propeller No. 358951 1 and 4. Blade ⌀ 160 260 35 8950 Cleaning propeller eShop eShop 31E Shank ⌀ mm 20 Speed range min-1 6000 – 12000 5000 – 8000 Spare cleaning propeller ​ Suitable for: Cleaning propeller No. 358950. Supplied with: Supplied with spring, positioning pin and retainer pin. Type 1 1K 4 4K 35 8951 Spare cleaning propeller eShop eShop eShop eShop 31E 35 8951 _4 maximum speed min-1 8000 12000 8000 12000 Number of vanes pcs. 1 1 4 4 Spare springs ​ Suitable for: 358950 260. ​ 4 35 8953 Spare spring set 4 pcs eShop 31E 35 8953 1282
