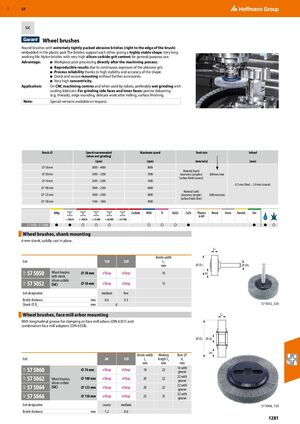

GBP 57 SiC Wheel brushes Round brushes with extremely tightly packed abrasive bristles (right to the edge of the brush) embedded in the plastic pad. The bristles support each other, giving a highly stable shape. Very long working life. Nylon bristles with very high silicon carbide grit content for general-purpose use. Advantage: ■ Workpiece post-processing directly after the machining process. ■ Reproducible results due to continuous exposure of the abrasive grit. ■ Process reliability thanks to high stability and accuracy of the shape. ■ Quick and secure mounting without further accessories. ■ Very high concentricity. Application: On CNC machining centres and when used by robots, preferably wet grinding with cooling lubricant. For grinding side faces and inner faces: precise deburring (e.g. threads), edge rounding, delicate work after milling, surface finishing. Note: Special versions available on request. Brush ⌀ Speed recommended Maximum speed Feed rate Infeed (when wet grinding) (rpm) (rpm) (mm/min) (mm) ⌀ 38 mm 3000 – 4000 8000 Material (hard) ⌀ 50 mm 2400 – 3200 7000 Geometry (complex) 800 mm/min Surface finish (coarse) ⌀ 76 mm 2400 – 3200 7000 0.5 mm (fine) – 2.0 mm (coarse) ⌀ 100 mm 1800 – 2500 6000 Material (soft) ⌀ 125 mm 1800 – 2500 6000 Geometry (simple) 3000 mm/min Surface finish (fine) ⌀ 150 mm 1300 – 1800 4000 ​ 57 5050–​57 5066 ● ● ○ ○ ○ ○ ○ ○ ● ● ● ○ Wheel brushes, shank mounting ​ 6 mm shank, solidly cast in place. L1 Bristle width Grit 120 320 L1 mm ⌀ D1 ⌀ DS 57 5050 Wheel brushes ⌀ 38 mm eShop eShop 10 51P H1 with shank, silicon carbide 57 5052 ⌀ 50 mm eShop eShop 13 51P (SiC) Grit designation medium fine ​ Bristle thickness mm 0.6 0.3 ​ Shank ⌀ Ds mm 6 ​ 57 5052_320 Wheel brushes, face mill arbor mounting ​ L1 With longitudinal groove for clamping on face mill arbors (DIN 6357) and combination face mill adapters (DIN 6358). ⌀ D1 ⌀ d1 H1 Bristle width Working Bore ⌀ Grit 80 120 L1 length L3 d1 mm mm mm 16 with 57 5060 ⌀ 76 mm eShop eShop 18 22 51P groove 22 with 57 5062 ⌀ 100 mm eShop eShop 20 22 51P Wheel brushes, groove silicon carbide 22 with 57 5064 (SiC) ⌀ 125 mm eShop eShop 20 22 51P groove 32 with 57 5066 ⌀ 150 mm eShop eShop 25 35 51P groove Grit designation coarse medium ​ ​ ​ 57 5064_120 Bristle thickness mm 1.2 0.6 ​ ​ ​ 1281
