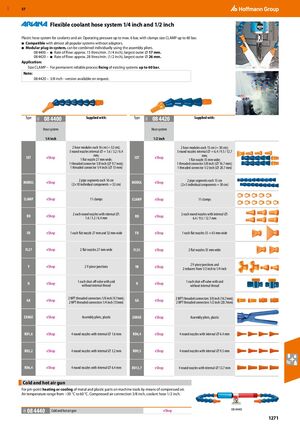

GBP 57 ​ Flexible coolant hose system 1/4 inch and 1/2 inch Plastic hose system for coolants and air. Operating pressure up to max. 6 bar, with clamps size CLAMP up to 60 bar. ■ Compatible with almost all popular systems without adaptors. ■ Modular plug-in system, can be combined individually using the assembly pliers. 08 4400 – ■ Rate of flow: approx. 15 litres/min. (1/4 inch), largest outer ⌀ 17 mm. 08 4420 – ■ Rate of flow: approx. 28 litres/min. (1/2 inch), largest outer ⌀ 26 mm. Application: Size CLAMP – For permanent reliable process fixing of existing systems up to 60 bar. Note: 08 4420 – 3/8 inch - version available on request. Type 08 4400 Supplied with: Type 08 4420 Supplied with: 08J 08J Hose system Hose system 1/4 inch 1/2 inch 2 hose modules each 16 cm (= 32 cm); 2 hose modules each 15 cm (= 30 cm); 3 round nozzles internal ⌀ = 1.6 / 3.2 / 6.4 3 round nozzles internal ⌀ = 6.4 / 9.5 / 12.7 mm; mm; SET eShop 1 flat nozzle 27 mm wide; SET eShop 1 flat nozzle 35 mm wide; 1 threaded connector 1/8 inch (⌀ 9.7 mm); 1 threaded connector 3/8 inch (⌀ 16.7 mm); 1 threaded connector 1/4 inch (⌀ 13 mm) 1 threaded connector 1/2 inch (⌀ 20.7 mm) MODUL 2 pipe segments each 16 cm 2 pipe segments each 15 cm eShop MODUL eShop (2×10 individual components = 32 cm) (2×5 individual components = 30 cm) CLAMP eShop 11 clamps CLAMP eShop 11 clamps RD 2 each round nozzles with internal ⌀: 2 each round nozzles with internal ⌀: eShop RD eShop 1.6 / 3.2 / 6.4 mm 6.4 / 9.5 / 12.7 mm FD eShop 1 each flat nozzle 27 mm and 32 mm wide FD eShop 1 each flat nozzles 35 + 63 mm wide FL27 eShop 2 flat nozzles 27 mm wide FL35 eShop 2 flat nozzles 35 mm wide Y eShop 2 Y-piece junctions YR 2 Y-piece junctions and eShop 2 reducers from 1/2 inch to 1/4 inch H 1 each shut-off valve with and 1 each shut-off valve with and eShop H eShop without internal thread without internal thread GA 2 NPT threaded connectors 1/8 inch (9.7mm); 2 NPT threaded connectors 3/8 inch (16.7mm); eShop GA eShop 2 NPT threaded connectors 1/4 inch (13mm) 2 NPT threaded connectors 1/2 inch (20.7mm) ZANGE eShop Assembly pliers, plastic ZANGE eShop Assembly pliers, plastic RD1,6 eShop 4 round nozzles with internal ⌀ 1.6 mm RD6,4 eShop 4 round nozzles with internal ⌀ 6.4 mm RD3,2 eShop 4 round nozzles with internal ⌀ 3.2 mm RD9,5 eShop 4 round nozzles with internal ⌀ 9.5 mm RD6,4 eShop 4 round nozzles with internal ⌀ 6.4 mm RD12,7 eShop 4 round nozzles with internal ⌀ 12.7 mm Cold and hot air gun ​ For pin-point heating or cooling of metal and plastic parts on machine tools by means of compressed air. Air temperature range from −30 °C to 60 °C. Compressed air connection 3/8 inch, coolant hose 1/2 inch. 08 4440 Cold and hot air gun eShop 08 4440 08J 1271
