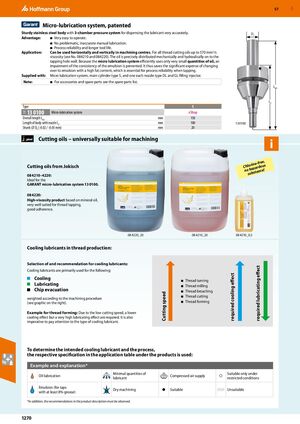

Режущие и зажимные инструменты Hoffmann Group 2026 - страница 1270

GBP 57 ​ Micro-lubrication system, patented Sturdy stainless steel body with 3-chamber pressure system for dispensing the lubricant very accurately. Ds Advantage: ■ Very easy to operate. ■ No problematic, inaccurate manual lubrication. ■ Process reliability and longer tool life. Application: Can be used horizontally and vertically in machining centres. For all thread cutting oils up to 570 mm2/s viscosity (see No. 084210 and 084220). The oil is precisely distributed mechanically and hydraulically on to the tapping hole wall. Because the micro lubrication system efficiently uses only very small quantities of oil, an impairment of the consistency of the emulsion is prevented. It thus saves the significant expense of changing over to emulsion with a high fat content, which is essential for process reliability when tapping. Supplied with: Micro lubrication system, main cylinder type S, and one each nozzle type DL and GL filling injector. Note: ■ For accessories and spare parts see the spare parts list. Ltot L2 Type S 13 0100 Micro-lubrication system eShop 11F Overall length Ltot mm 150 Length of body with nozzle L2 mm 100 13 0100 Shank ⌀ DS (-0.02 / -0.05 mm) mm 20 Cutting oils – universally suitable for machining ee, ine-fr Cutting oils from Jokisch Chlor zardous no ha stance! 08 4210–4220: sub Ideal for the GARANT micro-lubrication system 13 0100. 08 4220: High-viscosity product based on mineral oil, very well suited for thread tapping, good adherence. 08 4220_20 08 4210_20 08 4210_0,5 Cooling lubricants in thread production: Selection of and recommendation for cooling lubricants: required lubricating effect Cooling lubricants are primarily used for the following: required cooling effect Cooling ■ Thread turning Lubricating ■ Thread milling Chip evacuation ■ Thread broaching Cutting speed ■ Thread cutting weighted according to the machining procedure (see graphic on the right). ■ Thread forming Example for thread forming: Due to the low cutting speed, a lower cooling effect but a very high lubricating effect are required. It is also imperative to pay attention to the type of cooling lubricant. To determine the intended cooling lubricant and the process, the respective specification in the application table under the products is used: Example and explanation* Minimal quantities of Suitable only under Oil lubrication Compressed air supply ○ lubricant restricted conditions Emulsion (for taps Dry machining ● Suitable Unsuitable with at least 8% grease) *In addition, the recommendations in the product description must be observed. 1270
