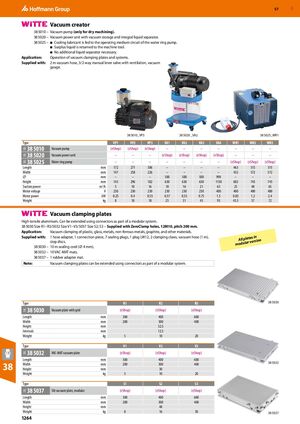

GBP 57 ​ Vacuum creator 38 5010 – Vacuum pump (only for dry machining). 38 5020 – Vacuum power unit with vacuum storage and integral liquid separator. 38 5025 – ■ Cooling lubricant is fed to the operating medium circuit of the water ring pump. ■ Surplus liquid is returned to the machine tool. ■ No additional liquid separator necessary. Application: Operation of vacuum clamping plates and systems. Supplied with: 2 m vacuum hose, 3/2-way manual lever valve with ventilation, vacuum gauge. 38 5010_VP3 38 5020 _VA2 38 5025_WR1 Type VP1 VP2 VP3 VA1 VA2 VA3 VA4 WR1 WR2 WR3 38 5010 Vacuum pump (eShop) (eShop) (eShop) – – – – – – – 38L 38L 38L 38 5020 Vacuum power unit – – – (eShop) (eShop) (eShop) (eShop) – – – 38 5025 Water ring pump – – – – – – – (eShop) (eShop) (eShop) Length mm 172 271 306 – – – – 463 515 515 Width mm 147 258 226 – – – – 432 572 572 ⌀ mm – – – 500 500 500 990 – – – Height mm 143 296 182 630 630 630 1130 602 743 743 Suction power m3/h 5 10 16 10 16 21 63 25 48 65 Motor voltage V 230 230 230 230 230 230 400 400 400 400 Motor power kW 0.25 0.4 0.55 0.37 0.55 0.75 1.5 0.83 1.2 2.4 Weight kg 8 18 18 25 31 45 95 45.5 57 72 ​ Vacuum clamping plates High-tensile aluminium. Can be extended using connectors as part of a modular system. 38 5030 Size R1–R3/5032 Size V1–V3/5037 Size S2; S3 – Supplied with ZeroClamp holes, 12M10, pitch 200 mm. Application: Vacuum clamping of plastic, glass, metals, non-ferrous metals, graphite, and other materials. Supplied with: 1 hose adapter, 1 connection piece, 7 sealing plugs, 1 plug LW12, 2 clamping claws, vacuum hose (1 m), s in stop discs. All plateersion rv modula 38 5030 – 10 m sealing cord (⌀ 4 mm). 38 5032 – 10 VAC-MAT mats. 38 5037 – 1 rubber adapter mat. Note: Vacuum clamping plates can be extended using connectors as part of a modular system. Type R1 R2 R3 38 5030 38 5030 Vacuum plate with grid (eShop) (eShop) (eShop) 38L Length mm 300 400 600 Width mm 200 300 400 Height mm 32.5 Intervals mm 12.5 Weight kg 5 10 20 Type V1 V2 V3 38 5032 VAC-MAT vacuum plate (eShop) (eShop) (eShop) 38L Length mm 300 400 600 38 5032 38 Width Height Weight mm mm kg 200 5 300 30 10 400 20 Type S1 S2 S3 38 5037 Slit vacuum plate, modular (eShop) (eShop) (eShop) 38L Length mm 300 400 600 Width mm 200 300 400 Height mm 48 Weight kg 8 16 30 38 5037 1264
