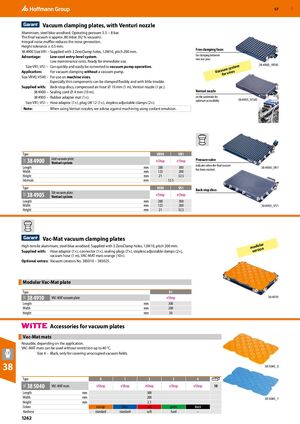

GBP 57 ​ Vacuum clamping plates, with Venturi nozzle Aluminium, steel blue anodised. Operating pressure 3.5 − 8 bar. The final vacuum is approx. 80 mbar (92 % vacuum). Integral noise muffler reduces the noise generation. Height tolerance ± 0.5 mm. Free clamping faces 38 4900 Size VR1 – Supplied with 2 ZeroClamp holes, 12M10, pitch 200 mm. for clamping between Advantage: Low-cost entry-level system. two vice jaws Low maintenance costs. Ready for immediate use. 38 4900_VRV0 Size VR1; VS1 – Can quickly and easily be converted to vacuum pump operation. stem um sy Application: For vacuum clamping without a vacuum pump. Vacu r vices fo Size VRV0; VSV0 – For use on machine vices. Especially thin components can be clamped flexibly and with little trouble. Supplied with: Back-stop discs, compressed air hose ⌀ 10 mm (1 m), Venturi nozzle (1 pc.). 38 4900 – Sealing cord ⌀ 4 mm (10 m). Venturi nozzle 38 4905 – Rubber adapter mat (1×). on the underside for optimum accessibility 38 4905_VSV0 Size VR1; VS1 – Hose adaptor (1×), plug LW 12 (1×), stepless adjustable clamps (2×). Note: When using Venturi nozzles, we advise against machining using coolant emulsion. Type VRV0 VR1 Grid vacuum plate 38 4900 eShop eShop Pressure valve 31E Venturi system indicates when the final vacuum Length mm 200 300 has been reached. 38 4900_VR1 Width mm 125 200 Height mm 21 32.5 Intervals mm 12.5 Type VSV0 VS1 Back-stop discs Slit vacuum plate 38 4905 eShop eShop 31E Venturi system Length mm 200 300 Width mm 125 200 38 4905_VS1 Height mm 21 32.5 Vac-Mat vacuum clamping plates lar High-tensile aluminium, steel blue anodised. Supplied with 2 ZeroClamp holes, 12M10, pitch 200 mm. moduion Supplied with: Hose adaptor (1×), connector (1×), sealing plugs (7×), stepless adjustable clamps (2×), ve r s vacuum hose (1 m), VAC-MAT mats orange (10×). Optional extras: Vacuum creators No. 385010 – 385025. Modular Vac-Mat plate ​ Type V1 38 4910 VAC-MAT vacuum plate eShop 38 4910 31E Length mm 300 Width mm 200 Height mm 30 ​ Accessories for vacuum plates Vac-Mat mats ​ Reusable, depending on the application. VAC-MAT mats can be used without restriction up to 40 °C. Size 4 – Black, only for covering unoccupied vacuum fields. 38 38 5040_0 Type 0 1 2 3 4 38 5040 VAC-MAT mats eShop eShop eShop eShop eShop 10 38L Length mm 300 ​ Width mm 200 ​ 38 5040_1 Height mm 2.5 ​ Colour orange blue red green black ​ Hardness standard standard soft hard – ​ 1262
