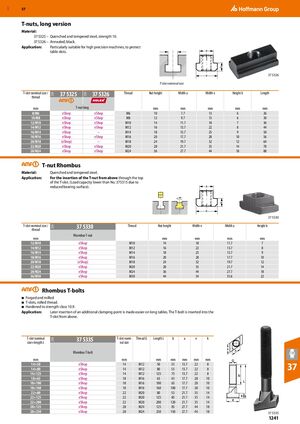

GBP 57 ​T-nuts, long version Material: 37 5325 – Quenched and tempered steel, strength 10. 37 5326 – Annealed, black. Application: Particularly suitable for high precision machines, to protect table slots. a k e ​ 37 5326 T-slot nominal size T-slot nominal size / 37 5325 37 5326 Thread Nut height Width a Width e Height k Length 32H 35A thread mm T-nut long ​ mm mm mm mm mm 8/M6 eShop eShop M6 10 7.7 13 6 26 10/M8 eShop eShop M8 12 9.7 15 6 30 12/M10 eShop eShop M10 14 11.7 18 7 36 14/M12 eShop eShop M12 16 13.7 22 8 44 16/M14 eShop – M14 18 15.7 25 9 50 18/M16 eShop eShop M16 20 17.7 28 10 56 20/M18 (eShop) – M18 24 19.7 32 12 64 22/M20 eShop eShop M20 28 21.7 35 14 70 28/M24 eShop eShop M24 36 27.7 44 18 88 ​ T-nut Rhombus Material: Quenched and tempered steel. Application: For the insertion of the T-nut from above through the top of the T-slot. (Load capacity lower than No. 375315 due to reduced bearing surface). a k e ​ 37 5330 T-slot nominal size / 37 5330 Thread Nut height Width e Width a Height k 35A thread Rhombus T-nut mm ​ mm mm mm mm 12/M10 eShop M10 14 18 11.7 7 14/M12 eShop M12 16 22 13.7 8 16/M14 eShop M14 18 25 15.7 9 18/M16 eShop M16 20 28 17.7 10 20/M18 (eShop) M18 24 32 19.7 12 22/M20 eShop M20 28 35 21.7 14 28/M24 eShop M24 36 44 27.7 18 36/M30 eShop M30 44 54 35.6 22 ​ Rhombus T-bolts ■ Forged and milled ■ T-slots, rolled thread. ■ Hardened to strength class 10.9. Application: Later insertion of an additional clamping point is made easier on long tables. The T-bolt is inserted into the T-slot from above. T-slot nominal 37 5335 T-slot nomi- Thread G Length L b a e k 35A size×length L nal size a a Rhombus T-bolt mm mm ​ mm mm mm mm mm 14×50 14×80 14×125 eShop eShop eShop 14 14 14 M12 M12 M12 50 80 125 35 55 75 13.7 13.7 13.7 22 22 22 8 8 8 37 18×63 eShop 18 M16 63 45 17.7 28 10 18×100 eShop 18 M16 100 65 17.7 28 10 18×160 eShop 18 M16 160 100 17.7 28 10 22×80 eShop 22 M20 80 55 21.7 35 14 22×125 eShop 22 M20 125 85 21.7 35 14 22×200 eShop 22 M20 200 120 21.7 35 14 28×125 eShop 28 M24 125 85 27.7 44 18 28×250 eShop 28 M24 250 150 27.7 44 18 ​ 37 5335 1241
