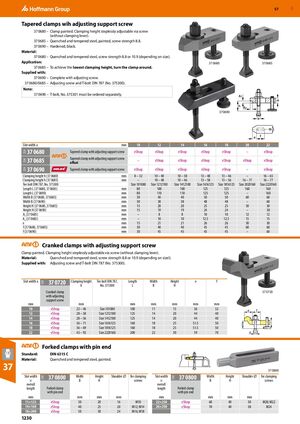

GBP 57 ​Tapered clamps wih adjusting support screw 37 0680 – Clamp painted. Clamping height steplessly adjustable via screw (without clamping lever). 37 0685 – Quenched and tempered steel, painted, screw strength 8.8. 37 0690 – Hardened, black. Material: 37 0680 – Quenched and tempered steel, screw strength 8.8 or 10.9 (depending on size). Application: ​ 37 0680 ​ 37 0685 37 0685 – To achieve the lowest clamping height, turn the clamp around. Supplied with: 37 0690 – Complete with adjusting screw. 37 0680/0685 – Adjusting screw and T-bolt DIN 787 (No. 375300). Note: 37 0690 – T-bolt, No. 375301 must be ordered separately. ​ 37 0690 Slot width a mm 10 12 14 16 18 20 22 37 0680 Tapered clamp with adjusting support screw eShop eShop eShop eShop eShop – eShop 35A Tapered clamp with adjusting support screw 37 0685 – eShop eShop eShop eShop eShop eShop 35A offset 37 0690 32H Tapered clamp with adjusting support screw eShop eShop eShop eShop eShop – eShop Clamping height h (37 0680) mm 8 – 32 10 – 40 10 – 38 13 – 48 13 – 46 – 16 – 65 Clamping height h (37 0685) mm – 10 – 48 10 – 46 13 – 58 13 – 56 16 – 77 16 – 77 Tee bolt DIN 787, No. 375300 Size 101080 Size 1212100 Size 1412100 Size 1616125 Size 1816125 Size 2020160 Size 2220160 Length L (37 0680, 37 0685) mm 80 100 100 125 125 160 160 Length L (37 0690) mm 80 110 110 125 125 – 160 Width B (37 0680, 37 0685) mm 30 40 40 50 50 60 60 Width B (37 0690) mm 30 38 38 48 48 – 60 Height H (37 0680, 37 0685) mm 15 20 20 25 25 30 30 Height H (37 0690) mm 15 19 19 24 24 – 30 A1 (37 0685) mm – 8 8 10 10 12 12 A2 (37 0685) mm – 10 10 12.5 12.5 15 15 e mm 15 21 21 26 26 30 30 f (37 0680, 37 0685) mm 30 40 40 45 45 60 60 f (37 0690) mm 30 45 45 45 45 – 60 ​ Cranked clamps with adjusting support screw Clamp painted. Clamping height steplessly adjustable via screw (without clamping lever). Material: Quenched and tempered steel, screw strength 8.8 or 10.9 (depending on size!). Supplied with: Adjusting screw and T-bolt DIN 787 (No. 375300). Slot width a 37 0720 Clamping height Tee bolt DIN 787, Length Width Height e f 35A h No. 375300 L B H Cranked clamp 37 0720​ with adjusting support screw mm mm mm mm mm mm mm 10 eShop 22 – 46 Size 101080 100 11 15 36 32 e f 12 eShop 28 – 58 Size 1212100 125 14 20 44 40 14 eShop 28 – 56 Size 1412100 125 14 20 44 40 16 eShop 36 – 71 Size 1616125 160 18 25 51.5 50 c h 18 eShop 36 – 69 Size 1816125 160 18 25 51.5 50 22 eShop 43 – 92 Size 2220160 200 22 30 59 70 a ​ Forked clamps with pin end Standard: DIN 6315 C Material: Quenched and tempered steel, painted. 37 ​ 37 0800 Slot width 37 0800 Width Height Shoulder ⌀ for clamping Slot width 37 0800 Width Height Shoulder ⌀ for clamping 35A 35A × B H screws × B H screws overall overall length Forked clamp length Forked clamp with pin end with pin end mm mm mm mm ​ mm mm mm mm ​ 11×125 eShop 30 20 16 M10 22×250 eShop 60 40 30 M20; M22 14×160 eShop 40 25 20 M12; M14 26×250 eShop 70 40 38 M24 18×200 eShop 50 30 24 M16; M18 ​ ​ ​ ​ ​ ​ 1230
