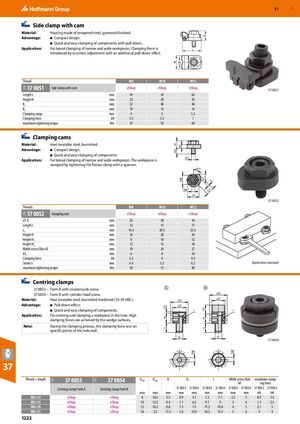

GBP 57 ​ Side clamp with cam Material: Housing made of tempered steel, gunmetal finished. Advantage: ■ Compact design. ■ Quick and easy clamping of components with pull-down. Application: For lateral clamping of narrow and wide workpieces. Clamping force is introduced by eccentric adjustment with an additional pull-down effect. Thread M8 M10 M12 37 0051 Side clamp with cam eShop eShop eShop 37K 37 0051 Length L mm 44 54 62 Height H mm 23 29 35 B1 mm 32 40 46 B2 mm 10 12 14 Clamping range mm 4 5 5.5 Clamping force kN 3.5 5.5 7 maximum tightening torque Nm 45 55 60 ​ Clamping cams Material: Heat treatable steel, burnished H H1 Advantage: ■ Compact design. H2 ■ Quick and easy clamping of components. D1 Application: For lateral clamping of narrow and wide workpieces. The workpiece is clamped by tightening the fixture clamp with a spanner. 45° L SW S SW1 L1 D 37 0052 Threads M8 M10 M12 37 0052 Clamping cam eShop eShop eShop 37K ⌀ D mm 24 30 34 Length L mm 12 15 17 L1 mm 16.4 20.5 23.2 Height H mm 16 20 24 Height H1 mm 8 10 12 Height H2 mm 12 15 18 Width across flats AF mm 19 24 27 AF1 mm 6 8 10 Clamping force kN 5.2 8 9.3 Stroke S mm 4.4 5.5 6.2 Application example maximum tightening torque Nm 50 75 90 ​ Centring clamps A B 37 0053 – Form A with countersunk screw. 37 0054 – Form B with cylinder head screw. ≤D Material: Heat treatable steel, burnished Hardened (33-39 HRC). ≥D ≤D Advantage: ■ Pull-down effect. ≥D H1 H1 ■ Quick and easy clamping of components. 1 1 Application: For centring and clamping a workpiece in the hole. High H H clamping forces are achieved by the wedge surfaces. Note: During the clamping process, the clamping force acts on L L specific points of the hole wall. D D 37 0054 SW SW 37 Thread × length 37 0053 37 0054 Dmin Dmax H H1 L Width across flats maximum clamp- 37K 37K AF ing force Centring clamp Form A Centring clamp Form B ​ ​ ​ 37 0053 37 0054 37 0053 37 0054 37 0053 37 0054 37 0053 37 0054 mm mm mm mm mm mm mm mm mm kN kN M4×12 eShop eShop 8 10.3 5.5 0.9 5.1 7.3 7.1 2.5 3 0.9 1.5 M5×15 eShop eShop 10 12.3 6.4 1.1 6.2 9.1 9 3 4 1.5 2.5 M6×18 eShop eShop 12 16.3 8.6 1.3 7.9 11.2 10.6 4 5 2.1 5 M8×25 eShop eShop 16 22 11.5 1.6 10.4 16.2 15.4 5 6 4 9 1222
