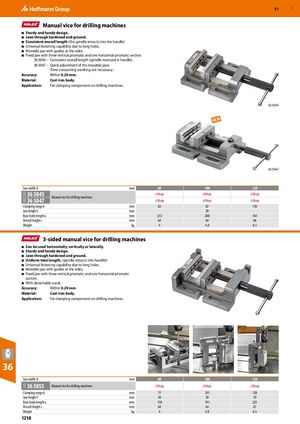

GBP 57 ​ Manual vice for drilling machines ■ Sturdy and handy design. ■ Jaws through hardened and ground. ■ Consistent overall length (the spindle retracts into the handle) ■ Universal fastening capability due to long holes. ■ Movable jaw with guides at the sides. ■ Fixed jaw with three vertical prismatic and one horizontal prismatic section. 36 5045 – Consistent overall length (spindle recessed in handle). 36 5047 – Quick adjustment of the movable jaws. Time-consuming cranking not necessary. Accuracy: Within 0.20 mm. Material: Cast iron body. Application: For clamping components on drilling machines. 36 5045 NEW 36 5047 Jaw width A mm 80 100 120 36 5045 32D 32D eShop eShop eShop Manual vice for drilling machines 36 5047 eShop eShop eShop Clamping range b mm 65 87 110 Jaw height C mm 30 Base body length a mm 233 288 343 Overall height c mm 64 64 66 Weight kg 4 4.8 6.5 ​ 3-sided manual vice for drilling machines ■ Can be used horizontally, vertically or laterally. ■ Sturdy and handy design. ■ Jaws through hardened and ground. ■ Uniform total length. (spindle retracts into handle!) ■ Universal fastening capability due to long holes. ■ Movable jaw with guides at the sides. ■ Fixed jaw with three vertical prismatic and one horizontal prismatic section. ■ With detachable crank. Accuracy: Within 0.20 mm. Material: Cast iron body. Application: For clamping components on drilling machines. 36 Jaw width A mm 80 100 120 36 5055 32D Manual vice for drilling machines eShop eShop eShop Clamping range b mm 77 101 128 Jaw height C mm 30 30 39 Base body length a mm 158 191 225 Overall height c mm 64 64 67 Weight kg 4 4.8 6.5 1218
