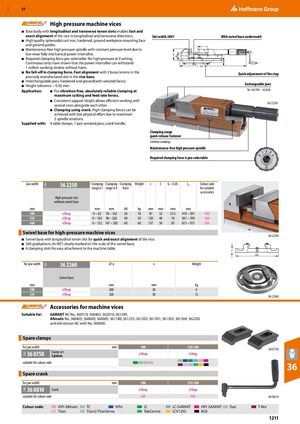

GBP 57 ​ High pressure machine vices ■ Base body with longitudinal and transverse tenon slots enables fast and exact alignment of the vice in longitudinal and transverse directions. Slot width 20H7 With swivel base underneath ■ High quality spheroidal cast iron, hardened, ground workpiece mounting face and ground guides. ■ Maintenance-free high pressure spindle with constant pressure level due to low-wear fully mechanical power intensifier. ■ Required clamping force pre-selectable: No high pressure at 0 setting. Continuous tests have shown that the power intensifier can withstand 1 million working strokes without harm. ■ No fall-off in clamping force. Fast alignment with 2 loose tenons in the Quick adjustment of the stop precisely manufactured slot in the vice base. ■ Interchangeable jaws, hardened and ground(with serrated faces). ■ Height tolerance − 0.03 mm. Exchangeable jaws Application: ■ For vibration-free, absolutely reliable clamping at No. 362390 – 362620. maximum cutting and feed rate forces. ■ Consistent support height allows efficient working with 36 2250 several vices alongside each other. ■ Clamping using crank. High clamping forces can be achieved with low physical effort due to maximum 2 spindle rotations. Supplied with: 4 table clamps, 1 pair serrated jaws, crank handle. Clamping range quick-release fastener (without cranking) Maintenance-free high pressure spindle Required clamping force is pre-selectable Jaw width 36 2250 Clamping Clamping Clamping Weight c C G −0.05 L4 Colour code 34A range b I range b II force for suitable accessories High-pressure vice without swivel base mm mm mm kN kg mm mm mm mm ​ 100 eShop 0 – 82 78 – 162 30 18 87 32 53.5 419 – 581 125 eShop 0 – 102 98 – 202 40 30 120 40 78 507 – 709 160 eShop 0 – 152 147 – 302 60 60 137 50 85 613 – 915 Swivel base for high-pressure machine vices 36 2250 ■ Swivel base with longitudinal tenon slot for quick and exact alignment of the vice. ■ 360 graduations (4×90°) clearly marked on the scale of the swivel base. ■ 4 clamping slots for easy attachment to the machine table. v Øu for jaw width 36 2260 ⌀u v Weight 34A Swivel base mm mm mm kg 100 eShop 260 26 6 125 eShop 320 30 12 36 2260 ​ Accessories for machine vices Suitable for: GARANT NC No. 360510; 360465; 362010; 361290. Allmatic No. 360405; 360600; 360605; 361180; 361255; 361202; 361301; 361302; 361304; 362250 and old version NC with No. 360000. Spare clamps ​ for jaw width mm 100 125/160 36 0750 Clamp set 36 0750 34A eShop eShop 2 pieces ​ ​ ​ ​ ​ ​ suitable for colour code ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ 36 Spare crank ​ for jaw width mm 100 125/160 36 0810 34A Crank eShop eShop suitable for colour code 36 0810 Colour code: HiPr Allmatic TC HiPo LC LC-GARANT HiPr GARANT Duo T-Rex Titan Titan2/TitanSense TeleCentric LCV125G NC8 1211
