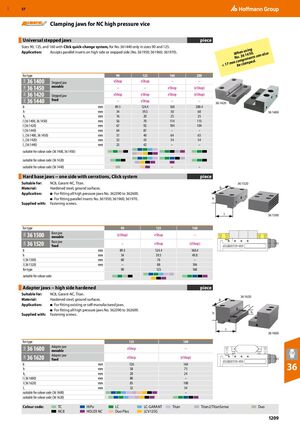

GBP 57 ​ Clamping jaws for NC high pressure vice Universal stepped jaws piece Sizes 90, 125, and 160 with Click quick-change system, for No. 361440 only in sizes 90 and 125. using Application: Accepts parallel inserts on high side or stepped side (No. 361950; 361960; 361970). When6 1450, n also . 3 ca N o nents m compomped. < 17 m be cla for type 90 125 160 200 36 1400 34A 34A 34A 34A Stepped jaw eShop eShop – – movable 36 1450 – – eShop (eShop) 36 1420 Stepped jaw eShop eShop eShop (eShop) fixed 36 1440 ​– eShop – ​ – 36 1420 b mm 89.5 124.4 160 200.4 h mm 34 39.5 50 60 ​ 36 1400 h1 mm 16 20 25 25 l (36 1400, 36 1450) mm 56 70 114 115 l (36 1420) mm 67 92 104 104 l (36 1440) mm 64 87 – – l1 (36 1400, 36 1450) mm 31 40 64 65 l1 (36 1420) mm 32 43 54 54 l1 (36 1440) mm 25 42 – – suitable for colour code (36 1400, 36 1450) ​ ​ ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​​ ​ ​ ​ ​ ​ suitable for colour code (36 1420) ​ ​ ​ ​ ​ ​ ​ ​ ​ suitable for colour code (36 1440) ​ ​ ​ – – Hard base jaws − one side with serrations, Click system piece Suitable for: NC8, Garant-NC, Titan. 36 1520 Material: Hardened steel, ground surfaces. b Application: ■ For fitting all high pressure jaws No. 362390 to 362600. ■ For fitting parallel inserts No. 361950; 361960; 361970. h Supplied with: Fastening screws. l ​ 36 1500 for type 90 125 160 Base jaw 36 1500 34A (eShop) eShop – movable Base jaw 36 1520 34A – eShop (eShop) fixed b mm 89.5 124.4 160.4 h mm 34 39.5 49.8 l (36 1500) mm 60 76 – l (36 1520) mm – 88 104 for type 90 125 160 suitable for colour code ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ Adapter jaws − high side hardened piece Suitable for: NC8, Garant-NC, Titan. ​ 36 1620 Material: Hardened steel, ground surfaces. b Application: ■ For fitting existing or self-manufactured jaws. l1 ■ For fitting all high pressure jaws No. 362390 to 362600. h h1 Supplied with: Fastening screws. l ​ 36 1600 for type 125 160 Adapter jaw 36 1600 34A eShop – movable Adapter jaw 36 1620 34A eShop (eShop) fixed b h h1 mm mm mm 126 58 20 164 73 24 36 l (36 1600) mm 80 – l (36 1620) mm 85 100 l1 mm 32 34 suitable for colour code (36 1600) ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ – suitable for colour code (36 1620) ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ Colour code: TC HiPo LC LC-GARANT Titan Titan2/TitanSense Duo NC8 HOLEX NC Duo Plus LCV125G 1209
