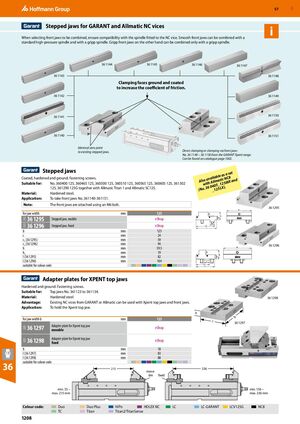

GBP 57 Stepped jaws for GARANT and Allmatic NC vices When selecting front jaws to be combined, ensure compatibility with the spindle fitted to the NC vice. Smooth front jaws can be combined with a standard high-pressure spindle and with a gripp spindle. Gripp front jaws on the other hand can be combined only with a gripp spindle. 36 1144 36 1145 36 1146 36 1147 36 1143 36 1148 Clamping faces ground and coated to increase the coefficient of friction. 36 1142 36 1149 36 1141 36 1150 36 1140 36 1151 Identical zero point to existing stepped jaws. Direct clamping or clamping via front jaws No. 36 1140 – 36 1150 from the GARANT Xpent range. Can be found on catalogue page 1002. ​ Stepped jaws et as a s Coated, hardened and ground. Fastening screws. a va ilable ic NC8 t Also h Allma 5MX and Suitable for: No. 360400 125, 360465 125, 360500 125, 360510 125, 360565 125, 360605 125, 361302 wit 405_12 60 X). 125, 361290 125G together with Allmatic Titan 1 and Allmatic SC125. (No. 3 _125L Material: Hardened steel. Application: To take front jaws No. 361140-361151. Note: The front jaws are attached using an M6 bolt. 36 1295 for jaw width mm 125 36 1295 Stepped jaw, mobile eShop 31O 31O 36 1296 Stepped jaw, fixed eShop b mm 125 c mm 24 c1 (36 1295) mm 59 c1 (36 1296) mm 94 36 1296 h mm 39.5 h1 mm 19 l (36 1295) mm 82 l (36 1296) mm 104 suitable for colour code ​ Adapter plates for XPENT top jaws Hardened and ground. Fastening screws. Suitable for: Top jaws No. 361123 to 361134. Material: Hardened steel 36 1298 Advantage: Existing NC vices from GARANT or Allmatic can be used with Xpent top jaws and front jaws. Application: To hold the Xpent top jaw. h b for jaw width b mm 125 l 36 1297 Adapter plate for Xpent top jaw 36 1297 eShop 31O movable Adapter plate for Xpent top jaw 36 1298 eShop 31O fixed h mm 18 l (36 1297) mm 83 l (36 1298) mm 88 suitable for colour code 36 215 mova- 336 ble fixed min. 35 – min. 156 – max. 215 mm max. 336 mm Colour code: Duo Duo Plus HiPo HOLEX NC LC LC-GARANT LCV125G NC8 TC Titan Titan2/TitanSense 1208
