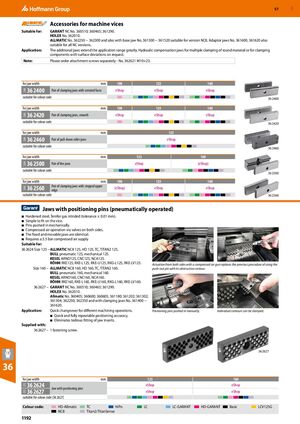

GBP 57 ​ Accessories for machine vices Suitable for: GARANT NC No. 360510; 360465; 361290. HOLEX No. 362010. ALLMATIC No. 362250 − 362300 and also with base jaw No. 361500 − 361520 suitable for version NC8. Adaptor jaws No. 361600, 361620 also suitable for all NC versions. Application: The additional jaws extend the application range greatly. Hydraulic compensation jaws for multiple clamping of round material or for clamping components with surface deviations on request. Note: Please order attachment screws separately - No. 362621 M10×23. for jaw width mm 100 125 160 36 2400 34A Pair of clamping jaws with serrated faces eShop eShop eShop suitable for colour code ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ 36 2400 for jaw width mm 100 125 160 36 2420 34A Pair of clamping jaws, smooth eShop eShop eShop suitable for colour code ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ 36 2420 for jaw width mm 125 36 2460 34A Pair of pull-down roller jaws eShop suitable for colour code ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ 36 2460 for jaw width mm 125 160 36 2500 34A Pair of Vee jaws eShop (eShop) suitable for colour code ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ 36 2500 for jaw width mm 100 125 160 Pair of clamping jaws with stepped upper 36 2560 34A (eShop) eShop eShop edge suitable for colour code ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ 36 2560 ​ Jaws with positioning pins (pneumatically operated) ■ Hardened steel, Tenifer gas nitrided (tolerance ± 0.01 mm). ■ Simple to fit on the vice. ■ Pins pushed in mechanically. ■ Compressed air operation via valves on both sides. ■ The fixed and movable jaws are identical. ■ Requires a 5.5 bar compressed air supply Suitable for: 36 2624 Size 125 – ALLMATIC NC8 125, HD 125, TC, TITAN2 125. BULL pneumatic 125, mechanical 125. KESEL ARNO125, CNC125, NCA125. RÖHM RKE125, RKE-L125, RKE-U125, RKG-L125, RKE-LV125. Actuation from both sides with a compressed air gun replaces the previous procedure of using the Size 160 – ALLMATIC NC8 160, HD 160, TC, TITAN2 160. push-out pin with its obstructive contour. BULL pneumatic 160, mechanical 160. KESEL ARNO160, CNC160, NCA160. RÖHM RKE160, RKE-L160, RKE-U160, RKG-L160, RKE-LV160. 36 2627 – GARANT NC No. 360510; 360465; 361290. HOLEX No. 362010. Allmatic No. 360405; 360600; 360605; 361180; 361202; 361302; 361304; 362250; 362350 and with clamping jaws No. 361400 − 361620. Application: Quick changeover for different machining operations. Positioning pins pushed in manually. Individual contours can be clamped. ■ Quick and fully repeatable positioning accuracy. ■ Eliminates tedious fitting of jaw inserts. Supplied with: 36 2627 – 1 fastening screw. 36 2627 36 for jaw width mm 125 160 36 2624 eShop eShop 31S 31S Jaw with positioning pins 36 2627 eShop eShop suitable for colour code (36 2627) ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​ Colour code: HD-Allmatic TC HiPo LC LC-GARANT HD-GARANT Basic LCV125G NC8 Titan2/TitanSense 1192
