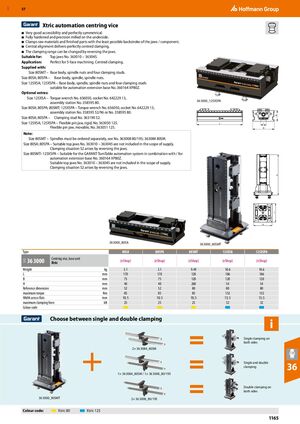

Xtric automation centring vice
- Fully hardened and precision milled on the underside.
- Clamps raw materials and finished parts with the least possible backstroke of the jaws / component.
- Central alignment delivers perfectly centred clamping.
- The clamping range can be changed by reversing the jaws.
Suitable for: Top jaws No. 363010 – 363045.
Application: Perfect for 5-face machining. Centred clamping.
Supplied with: Size 80SMT – Base body, spindle nuts and four clamping studs. Size 80SA; 80SPA – Base body, spindle, spindle nuts. Size 125XSA; 125XSPA – Base body, spindle, spindle nuts and four clamping studs suitable for automation extension base No. 360164 XP80Z.
Optional extras: Size 125XSA – Torque wrench No. 656050, socket No. 642229 13, assembly station No. 358595 80. Size 80SA; 80SPA; 80SMT; 125XSPA – Torque wrench No. 656050, socket No. 642229 13, assembly station No. 358595 52/96 or No. 358595 80. Size 80SA; 80SPA – Clamping stud No. 363190 52. Size 125XSA; 125XSPA – Flexible pin jaw, rigid, No. 363050 125. Flexible pin jaw, movable, No. 363051 125.
Note: Size 80SMT – Spindles must be ordered separately, see No. 363008 80/195; 363084 80SM. Size 80SA; 80SPA – Suitable top jaws No. 363010 – 363045 are not included in the scope of supply. Clamping situation S2 arises by reversing the jaws. Size 80SMT–125XSPA – Suitable for the GARANT TurnTable automation system in combination with / for automation extension base No. 360164 XP80Z. Suitable top jaws No. 363010 – 363045 are not included in the scope of supply. Clamping situation S2 arises by reversing the jaws.
36 3000_125XSPA
H L l B
H
L
B
36 3000_80SA 36 3000_80SMT
Type 80SA 80SPA 80SMT 125XSA 125XSPA
36 3000 Centring vice, base unit
| Xtric | (eShop) | (eShop) | (eShop) | (eShop) | (eShop) | |
| Weight | kg | 3.1 | 3.1 | 9.49 | 10.6 | 10.6 |
| L | mm | 170 | 170 | 120 | 186 | 186 |
| B | mm | 75 | 75 | 120 | 120 | 120 |
| H | mm | 40 | 40 | 260 | 54 | 54 |
| Reference dimension | mm | 52 | 52 | 80 | 80 | 80 |
| maximum torque | Nm | 85 | 85 | 85 | 132 | 132 |
| Width across flats | mm | 10; 5 | 10; 5 | 10; 5 | 13; 5 | 13; 5 |
| maximum clamping force | kN | 25 | 25 | 25 | 32 | 32 |
Colour code
Choose between single and double clamping
2× 36 3084_80SM
1× 36 3084_80SM / 1× 36 3008_80/195
36 3000_80SMT 2× 36 3008_80/195
Colour code: Xtric 80 Xtric 125
Single clamping on both sides Single and double 36 clamping
Double clamping on both sides
